Batteri HAT for Raspberry Pi

Description

The Li-polymer Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Raspberry Pi or other 5V devices, from a high capacity Li-polymer battery. It will charge the battery as well, supports bi-directional quick charge.

Compared with the Li-ion Battery HAT, this HAT utilizes Li-polymer battery with higher capacity, which means longer battery life, and allows higher loads. The size of the HAT is more fit for Raspberry Pi B/A+/B+/2B/3B/3B+/4B.

Features

• Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
• Lithium battery protection circuitry, provides reverse protection, over charge protection, and short circuit protection
• Onboard indicators: quick charge, power capacity
• PH 2.0 battery connector, for connecting the 3.7V 3000mA high capacity Li-polymer battery (MSDS certified)

Specifications

• Output voltage: 5V
• Charge voltage: 5V
• Applicable battery: 3.7V Li-polymer battery (4.2V when full charged)
• Dimension: 65.0mm × 56.5mm
• Mounting hole size: 3.0mm

What’s in Box

Note: the Raspberry Pi is NOT included.

1. Li-polymer Battery HAT x1
2. 3.7V 3000mAh Li-polymer battery x1
3. RPi screws pack (2pcs) x1

1

2

3

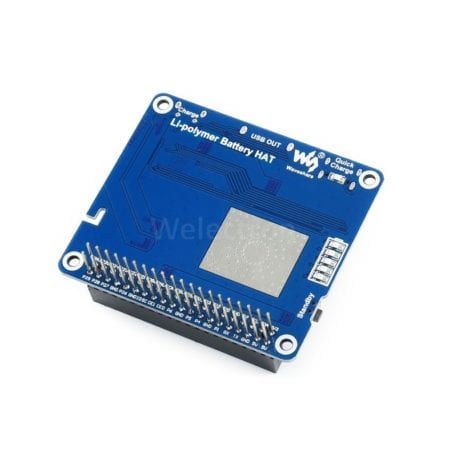

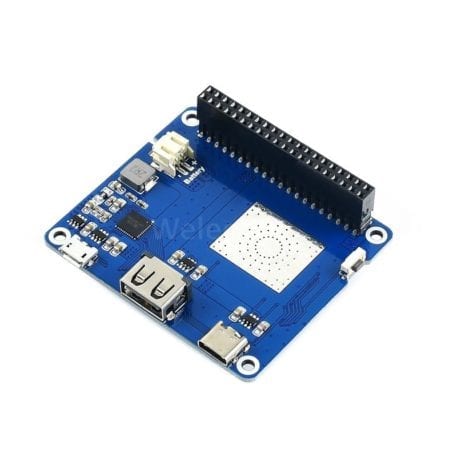

What’s on Board

1. Raspberry Pi GPIO connector: for connecting Raspberry Pi
2. PH 2.0 battery connector: for 3.7V Li-polymer battery
3. USB Type-C connector: 5V battery charge/power output, supports quick charge
4. USB Type-A connector: 5V power output
5. Micro USB connector: 5V battery charge
6. SW6106 power management chip
7. Power output control switch
   Click: operating mode, provides 5V output
   Double click: standby mode, no output
8. Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
9. Quick charge indicator: on when quick charging
10. Li-polymer battery: 3.7V 3000mAh, MSDS certified

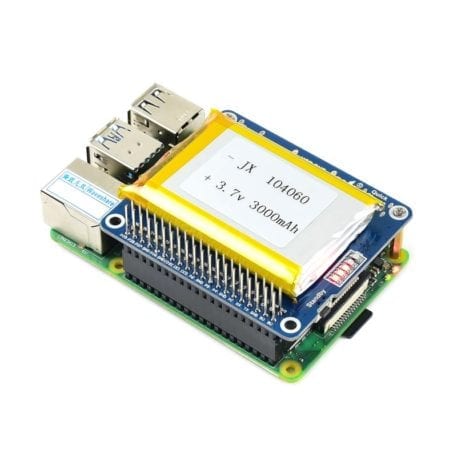

Example

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/Li-polymer_Battery_HAT
