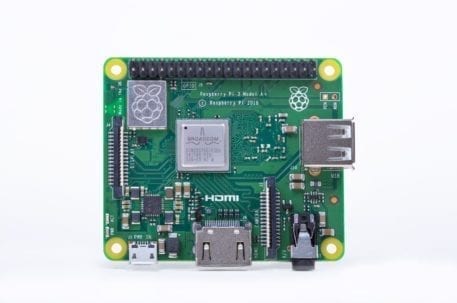

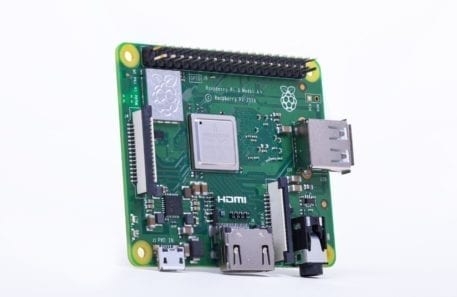

Raspberry Pi 3 Model A+

Description

Specifications

• Processor: Broadcom BCM2837B0, Cortex-A53, 64-bit SoC @ 1.4 GHz
• Memory: 512MB LPDDR2 SDRAM
• Connectivity: 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
• Access: Extended 40-pin GPIO header
• Video & sound: 1 × full size HDMI, MIPI DSI display port, MIPI CSI camera port, 4 pole stereo output and composite video port
• Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics
• SD card support: Micro SD format for loading operating system and data storage
• Input power: 5 V/2.5 A DC via micro USB connector / 5 V DC via GPIO header
• Environment: Operating temperature, 0–50°C
• Production lifetime: The Raspberry Pi 3 Model A+ will remain in production until at least January 2023

The dual-band wireless LAN comes with modular compliance
certification, allowing the board to be designed into end products with
significantly reduced wireless LAN compliance testing, improving both
cost and time to market.
