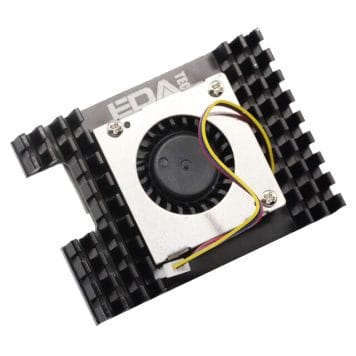

Edatec CM5 Active Cooler

Description

In the box

1 x ED-CM5ACOOLER
1 x Accessory Set (With 4 x M2.5*8 screws, 4 x M2.5*H1.5 nylon gaskets and
4 x M2.5*H3 nylon gaskets)

Installation

There are two ways to install ED-CM5ACOOLER, you can insert Raspberry Pi CM5 first or place nylon gaskets first.

Installation 1

Parts list:

1. ED-CM5ACOOLER x 1 pcs
2. Raspberry Pi CM5 (Not provided) x1 pcs
3. Motherboard (Not provided) x 1 pcs
4. M2.5*H1.5 or M2.5*H3 nylon gaskets x 4 pcs
5. M2.5*8 Screws x 4 pcs

Note

• Before you start installing, please remove the White Protective Paper from thermal silicone in the ED-CM5ACOOLER.
• Before you start installing, please make sure that the height of Raspberry Pi CM5 connector is 1.5mm or 3mm.
  If the height is 1.5mm, you need select 4 M2.5*H1.5 nylon gaskets to install ED-CM5ACOOLER.
  If the height is 3mm, you need select 4 M2.5*H3 nylon gaskets to install ED-CM5ACOOLER.
• If you need to design a case, it is recommended that the heat sink holes in the case are close to air outlet of the
  temperature-controlled blower fan on the ED-CM5ACOOLER.

Steps

1. Place 4 M2.5*H1.5 nylon gaskets or 4 M2.5*H3 nylon gaskets in the four screw hole positions on the Motherboard.
2. Insert Raspberry Pi CM5 into Motherboard through the connector.
3. Place the ED-CM5ACOOLER on the Raspberry Pi CM5, align the 4 screw holes and insert 4 M2.5*8 screws from the
   bottom of the Motherboard. Tighten them clockwise using a screwdriver to install the ED-CM5ACOOLER onto the
   Raspberry Pi CM5.

Installation 2

Parts list:

1. ED-CM5ACOOLER x 1 pcs
2. Raspberry Pi CM5 (Not provided) x 1 pcs
3. Motherboard (Not provided) x 1 pcs
4. M2.5*H1.5 or M2.5*H3 nylon gaskets x 4 pcs
5. M2.5*8 Screws x 4 pcs

Note

• Before you start installing, please remove the White Protective Paper from thermal silicone in the ED-CM5PCOOLER.
• Before you start installing, please make sure that the height of Raspberry Pi CM5 connector is 1.5mm or 3mm.
  If the height is 1.5mm, you need select 4 M2.5*H1.5 nylon gaskets to install ED-CM5PCOOLER.
  If the height is 3mm, you need select 4 M2.5*H3 nylon gaskets to install ED-CM5PCOOLER.
• If you need to design a case, it is recommended that the heat sink holes in the case are close to air outlet of the
  temperature-controlled blower fan on the ED-CM5ACOOLER.

Steps:

1. Insert Raspberry Pi CM5 into Motherboard through the connector.
2. Place 4 M2.5*H1.5 nylon gaskets or 4 M2.5*H3 nylon gaskets in the four screw hole positions between the Raspberry Pi CM5 and the Motherboard.
3. Place the ED-CM5ACOOLER on the Raspberry Pi CM5, align the 4 screw holes and insert 4 M2.5*8 screws from the
   bottom of the Motherboard. Tighten them clockwise using a screwdriver to install the ED-CM5ACOOLER onto the Raspberry Pi CM5.
4. Plug the power cable of temperature-controlled blower into the FAN connector on the Motherboard.

Specifications

Frequency Generator (FG) Signal for Temperature-controlled Blower

PWM Control Signal for Temperature-controlled Blower

PWM Test Record for Temperature-controlled Blower
