All-In-One Pi 10,1″ based on Raspberry Pi CM4

246,76 incl. VAT

All-In-One Pi (PN CS12800RA4101A-C111) is an industrial PC based on the Raspberry Pi Compute Module 4, and designed for both industrial, and smart home automation applications.

If the product is in stock: shipment within 0-2 weekdays.

Clear

Frequently Bought Together:

Power Supply for All-In-One Pi 10,1″

DC Power Supply for our All-In-One Pi 10,1″.

If the product is in stock: shipment within 0-2 weekdays.

Base Stand for All-In-One Pi 10,1″ - Black

Base Stand for our All-In-One Pi 10,1". All-In-One Pi is not included.

If the product is in stock: shipment within 0-2 weekdays.

Description

Note: This product comes with built in CM4104016, ie. WiFi, 4 GB RAM and 16 GB eMMC storage.

Based around the Raspberry Pi® CM4

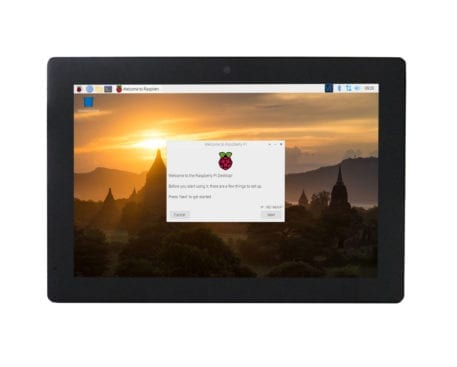

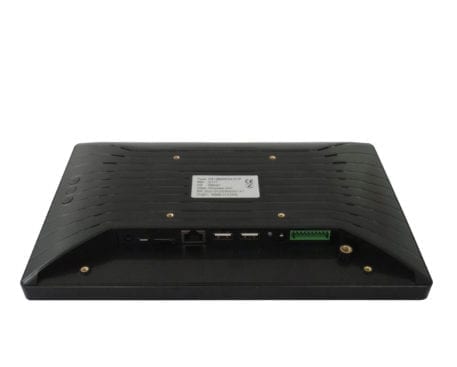

The AIO is a highly-durable Industrial PC based on the Raspberry Pi CM4. It features a 10.1-inch display with a capacitive touchscreen. Concerning hardware, it offers one TF card interface, two USB connectors, one LAN connector, two RS232 channels, one RS485 channel, and one Relay. The AIO also features one 3.5mm audio connector, one 2W internal stereo speaker, and one Buzzer.

The Compute Module 4 appears in different versions depending on the size of the DDR4 and eMMC. The Industrial Pi comes with the CM4 that features WiFi, 2GB DDR4+16GB eMMC.

*Please note that the 4G/LTE module does not come with the product by default.

Software and OS

The AIO, like other Raspberry Pi® based products, supports the Debian operating system. It also supports Ubuntu. Our software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.

If your project requires a different OS, please contact us.

Features

Weight620 g
Dimensions250.54 × 178.54 × 26.9 mm
Form-factorPanel
CPUCortex-A72 (Raspberry Pi)
Display Size (inch.)10.1″
Resolution1280*800
Brightness (cd/m²)350
Touch Screen10-Point Capacitive
External storage1 TF card slot designed for storage expansion
WiFi/BTThe CM4 that is currently shipped with this product has no WIFI/BT by default.
ZIGBEEInternal Zigbee supported, NOT mounted by default
4G/LTEInternal 4G/LTE module supported, NOT mounted by default
Ethernet1x Giga LAN
CameraCamera on the front panel, NOT mounted by default
AudioMic input on the front panel, 2W internal stereo speaker, 3.5mm audio In/Out connector
BuzzerYes
USB1x miniUSB OTG, 2x USB 2.0 HOST
RTCHigh accuracy internal RTC (keep track of time one week after power off)
GPIO/WiegandTwo 5V Logic GPIO Outputs, can be used as Wiegand signal
RS4851 Channel by default, 2 Channels at most. The RS485 circuit automatically controls the Input and Output direction (no need for software control)
RS2322 Channels by default
OSDebian, Ubuntu
Power Input9V~36V DC
Power Consumption6W
Current @ 12V500 mA max
Working Temperature0℃~50℃
Plastic Case ColorBlack, White
CertificationROHS, CE

Additional information

Color

Black, White
