Chipsee Industrial Pi 7″ – Raspberry Pi CM4 Carrier Board

227,78
(182,22 excl. VAT)

The Chipsee Industrial Pi is an industrial computer for the Raspberry Pi® Compute Module 4.

Buy your Raspberry Pi Compute Module 4 (CM4) here.

Only 3 left in stock

SKU: 1011 Categories: ,

Description

Note! Raspberry Pi CM4 is not included.

Available in panel form-factor, the Industrial Pi features a 7-inch IPS display (1024×600 pixels and 500 nits of brightness) with a 5-point capacitive touch panel, and RS232 and RS485 ports, multiple opto-isolated I/O, Ethernet, double USB, 4G/LTE (optional), ZigBee function, double TF card, on-board audio, RTC with a backup battery, audio I/O, and power management.

Spec

Weight700 g
Dimensions206 × 135 × 30.1 mm
Form-factorPanel
CPUCortex-A72 (Raspberry Pi)
Display Size (inch.)7.0″
Resolution1024*600
Brightness (cd/m²)500
Touch Screen5-Point Capacitive
FLASH16GB

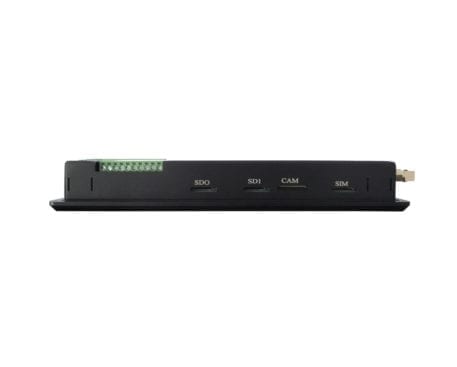

External storage2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion.
WiFi/BTThe Compute Module 4 that is currently shipped with this product has no WIFI/BT by default.
ZIGBEEOnboard Zigbee module (NOT mounted by default)
4GSupport miniPCIe slot for 4G/LTE module (neither miniPCIe Slot nor 4G LTE module is mounted by default.)
Ethernet1x Giga LAN
CameraThere is a camera connector compatible with the Raspberry Pi Camera connector (the camera is NOT mounted by default).

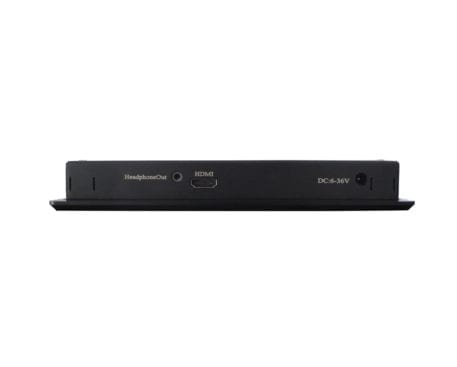

Audio3.5mm Audio Out Connector, Internal 2W Speaker
BuzzerYes
USB1x miniUSB OTG, 2x USB 2.0 HOST
RTCHigh Accuracy RTC with Lithium Button Coin battery (Lithium Battery not included)
GPIOOpto-Isolated GPIO, 4 Input, 4 Output, can drive up to 500mA current every Channel at most (external power source needed)
RS4852 Channels at most. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software.
RS2324 Channels at most
CAN1x CAN
OSDebian
Power Input6~36V DC
Power Consumption5W
Current @ 12V420 mA max
Working Temperature0℃~50℃
Mounting MethodPanel Mounting & VESA

Based around the Raspberry Pi® Compute Module

The Industrial Pi is full-featured, rugged, designed, and certified for industrial usage, ready to deploy industrial applications based around the Raspberry Pi® Compute Module 4.

Peripherals/Hardware

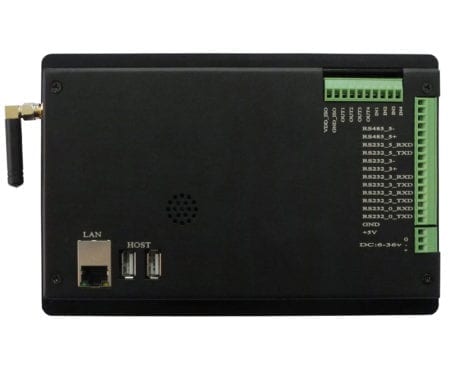

The Industrial Pi features two TF card interfaces, two USB connectors, and one LAN connector. It also has two RS232 channels, one RS485 channel, and eight Opto-Isolated GPIOs.

Concerning audio, it has one 3.5mm audio connector, one 2W internal speaker, and one Buzzer.

Please note that the 4G/LTE module does not come with the product by default.

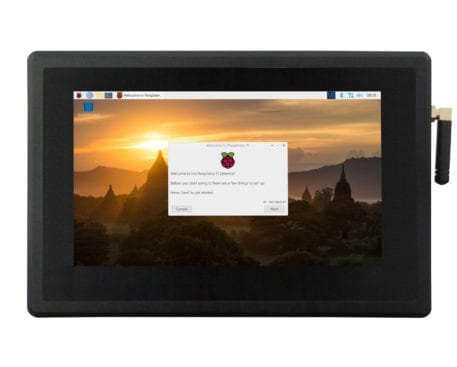

Capacitive Touch Panel

The Industrial Pi has a 5-point capacitive touch screen, with a 1024×600 resolution, that offers stable and accurate control over the device and great image clarity. They are also very durable and resistant to environmental contaminants like dust and water. These types of screens work best with either a finger or a stylus with a conductive tip.

Software and OS

The Industrial Pi, like other Raspberry Pi® based products, supports the Debian operating system.

Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.

Of course, if your project requires an OS that is not on the list, please contact us.

Additional information

Weight1500 g
GTIN / EAN / UPC
Manufacturer Product NumberPPC-CM4-070
BrandChipsee
Country of OriginCN
HS Tariff Code85319000
