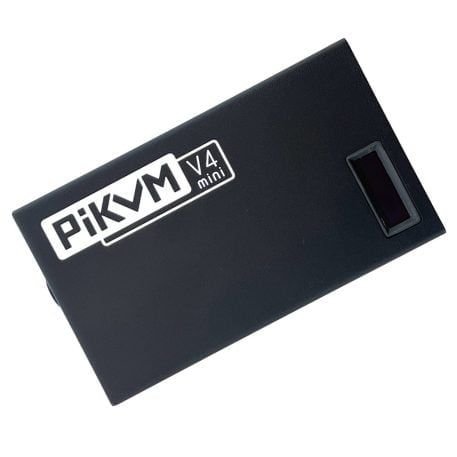

PiKVM V4 Mini

321,81
(257,45 excl. VAT)

PiKVM V4 Mini is the compact and budget-friendly version of PiKVM V4 with all the essential features. It is small, cost-effective, and powerful!

In stock

SKU: 9951 Category:

Description

PIKVM V4 MINI

The next generation of Raspberry Pi based KVM over IP. Manage your servers or PC remotely! PiKVM is a feature-rich, production grade, open-source, Raspberry Pi based KVM over IP device.

PiKVM V4 Mini is the compact and budget-friendly version of PiKVM V4 with all the essential features. It is small, cost-effective, and powerful!

FEATURES

  • Capture video signal up to 1920×1200@60 Hz with audio and deliver it to your browser using WebRTC and efficient H.264 encoding.
  • Transfer your mouse and keyboard actions to a remote PC.
  • Take full control of a remote PC’s power: remote reset or reboot using the actual hardware reset & power buttons connector functions.
  • Access to all configuration settings of a remote computer like tweaking UEFI/BIOS settings to do some overclocking!
  • Boot a controlled PC using any OS you need using mass storage device emulation support. You can even reinstall the system remotely!
  • Fanless design with a passive heatsink for quiet operation.
  • Includes a locator led simplifying your device search.
  • Improved power consumption in idle mode: just 2.67 Watts!

SPECIFICATIONS

Raspberry Pi Compute Module 4CM4102000 with 2GB of RAM, WiFi, and Bluetooth
Connection typeUSB-C
Power typeDC 5.1V, 3A
Power failure optionInternal supercapacitor for the real time clock support
HDMI femaleHDMI source input
USB-C femaleFor the keyboard, mouse, mass storage, and other external device emulation)
USB-C femaleSerial console management port
Micro SD card slotFor the OS storage
ATX RJ-45Special port for power control or AUX
WiFiOptional WiFi b/g/n support with internal/external antenna
LED indicatorspower, activity, console power, search led, HDMI source engaged
OLED displayOLED 128×32 0.91” white
Supported resolutionsup to 1920×1200@60Hz
Video compression methodsMJPEG, H.264
Audio capture modeHDMI audio capture support
Peak power consumptionUp to 12W (2.6A/5V)
Operating temperature0°C to 50°C
Storage temperature-20°C to 60°C
Size120 x 68 x 24mm
Weight0.35 kg

CONNECTIVITY DIAGRAM

  1. Power LED (Green)
  2. Power Input 5.1V 3A
  3. Activity LED (Red)
  4. Micro SD card slot
  5. USB 2.0 Serial console port
  6. Serial console active LED Green (“Beacon LED”)
  7. RJ45 1Gb Ethernet connector
  8. RJ45 ATX Control connector
  9. USB 2.0 OTG connector
  1. Mount hole for WiFi SMA antenna connector
  2. Beacon LED
  3. HDMI Power present LED Green
  4. HDMI video input connector
  5. Video capture power ok LED amber
  6. Ventilation holes
  7. Service switches
  8. Kensington Security Slot
  9. Display

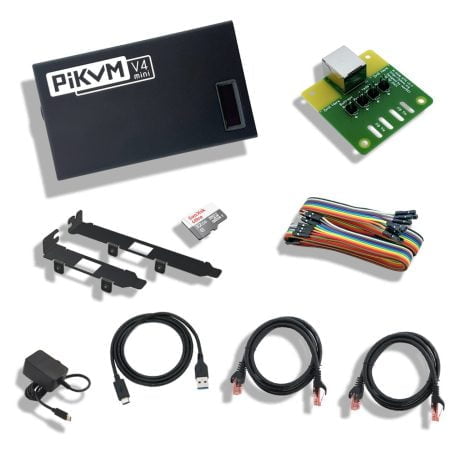

CONTENT

  1. PiKVM V4 Mini device
  2. Micro SD card with pre-imaged PiKVM software
  3. ATX control board
  4. ATX connection cables
  5. ATX installation brackets
  6. 1 x Ethernet cable
  7. 1 x ATX cable
  8. 1 x USB C to USB A cable
  9. 5V 3.1A USB C Power Supply (international adapters)

Additional information

Weight400 g
GTIN / EAN / UPC605926258261
Manufacturer Product Number
BrandPiKVM
Country of OriginUS
HS Tariff Code85389000
