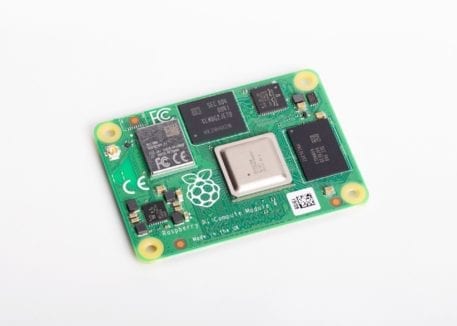

Raspberry Pi Compute Module 4

27,2998,61 incl. VAT

Need bulk quantities of CM4 or help with Raspberry Pi hardware/software? Contact us here.

Choose your variant below. See all SKUs with stock status.

If the product is in stock: shipment within 0-2 weekdays.
Clear

Frequently Bought Together:

Raspberry Pi Compute Module 4 IO Board

The CM4IO board breaks out every interface from CM4. It provides a development platform and reference base-board, reducing time to market for CM4-based designs.

Need bulk quantities of CM4 or help with Raspberry Pi hardware/software? Contact us here.

If the product is in stock: shipment within 1-2 weekdays.

Heatsink for Raspberry Pi Compute Module 4

Heatsink for Raspberry Pi CM4. Thermal pads for CPU, PMU and Wireless modules. Color: black.

If the product is in stock: shipment within 1-2 weekdays.

Antenna Kit for Raspberry Pi Compute Module 4

This Antenna Kit is certified for use with the Raspberry Pi Compute Module 4. If a different antenna is used, then separate certification will be required, and this must be arranged by the end-product design engineer.

If the product is in stock: shipment within 1-2 weekdays.

Out of stock

Description

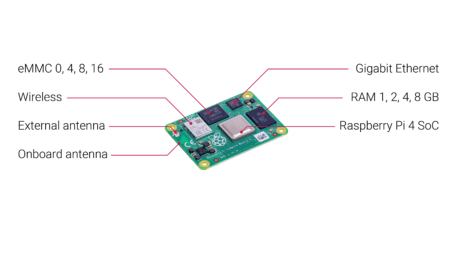

Compute Module 4 (CM4) brings the power of Raspberry Pi 4 to the popular Compute Module family.

Spec

  • Form factor: 55 mm × 40 mm
  • Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • Memory: 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
  • Connectivity:
    • Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
    • Onboard Gigabit Ethernet PHY supporting IEEE1588
    • 1 × USB 2.0 interface
    • PCIe Gen 2 x1 interface
    • 28 GPIO signals
    • SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
  • Video:
    • Dual HDMI interface (up to 4Kp60 supported)
    • 2-lane MIPI DSI display interface
    • 2-lane MIPI CSI camera interface
    • 4-lane MIPI DSI display interface
    • 4-lane MIPI CSI camera interface
  • Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
  • Input power: 5V DC
  • Operating temperature: 0 to +80°C

Documents

Raspberry Pi 4 Compute Module 4 product brief

Raspberry Pi Compute Module 4 datasheet

Compute Module 4 STEP file

Compute Module 4 Lite (without eMMC) STEP file

Stock – all models

SKUWirelessRamStorageStock
CM4101000Yes1 GB Ram0 GB eMMC0
CM4101008Yes1 GB Ram8 GB eMMC0
CM4101016Yes1 GB Ram16 GB eMMC0
CM4101032Yes1 GB Ram32 GB eMMC0
CM4102000Yes2 GB Ram0 GB eMMC0
CM4102008Yes2 GB Ram8 GB eMMC-50
CM4102016Yes2 GB Ram16 GB eMMC0
CM4102032Yes2 GB Ram32 GB eMMC0
CM4104000Yes4 GB Ram0 GB eMMC15
CM4104008Yes4 GB Ram8 GB eMMC0
CM4104016Yes4 GB Ram16 GB eMMC-270
CM4104032Yes4 GB Ram32 GB eMMC39
CM4108000Yes8 GB Ram0 GB eMMC0
CM4108008Yes8 GB Ram8 GB eMMC0
CM4108016Yes8 GB Ram16 GB eMMC0
CM4108032Yes8 GB Ram32 GB eMMC15
CM4001000No1 GB Ram0 GB eMMC-15
CM4001008No1 GB Ram8 GB eMMC0
CM4001016No1 GB Ram16 GB eMMC0
CM4001032No1 GB Ram32 GB eMMC0
CM4002000No2 GB Ram0 GB eMMC0
CM4002008No2 GB Ram8 GB eMMC-60
CM4002016No2 GB Ram16 GB eMMC-10
CM4002032No2 GB Ram32 GB eMMC5
CM4004000No4 GB Ram0 GB eMMC0
CM4004008No4 GB Ram8 GB eMMC0
CM4004016No4 GB Ram16 GB eMMC0
CM4004032No4 GB Ram32 GB eMMC5
CM4008000No8 GB Ram0 GB eMMC0
CM4008008No8 GB Ram8 GB eMMC53
CM4008016No8 GB Ram16 GB eMMC0
CM4008032No8 GB Ram32 GB eMMC0

Additional information

Wireless

Ja, Nej

Ram

1 GB, 2 GB, 4 GB, 8 GB

eMMC storage

0 GB (Lite), 8 GB, 16 GB, 32 GB
