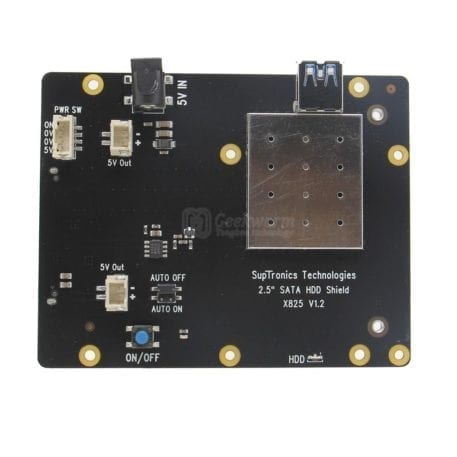

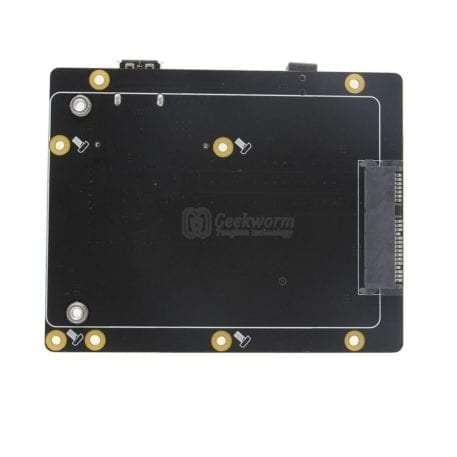

2.5″ SATA HDD/SSD Board for Raspberry Pi 4

Description

Overview

This is the new X825 V2.0 version which release at April 1st 2020, there will be a new case X825-C8 designed for X825 V2.0. The X825-C6 or X825-C7 DO NOT SUPPORT X825 V2.0. The X825 V2.0 Version is updated from X825 V1.5 Version.

Some new features of X825 V2.0(Updated on April 1st 2021):

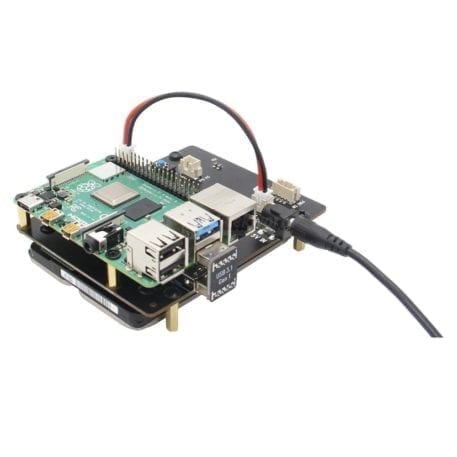

① Add 4 test pins to achieve powered between X825 V2.0 and Pi4 without additional cable. You can get power from the PI4’s Type-C port or X825 V2.0 DC JACK power socket.

② Removed the on-board power button and 4-pin external switch interface. You can connect the X735 board for software safe shutdown & power management .

③ Use more shorter USB 3.0 jumper/connector, so the matching metal case is X825-C8 NOT X825-C6.

Features

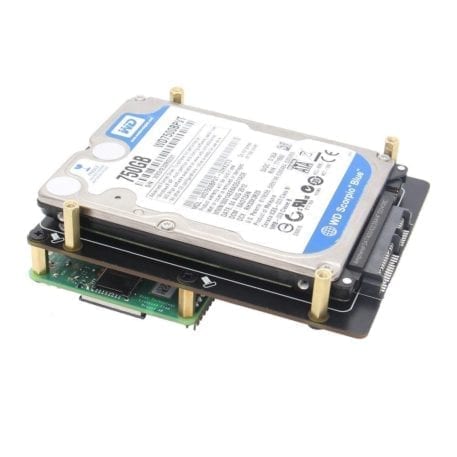

• Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) (Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)

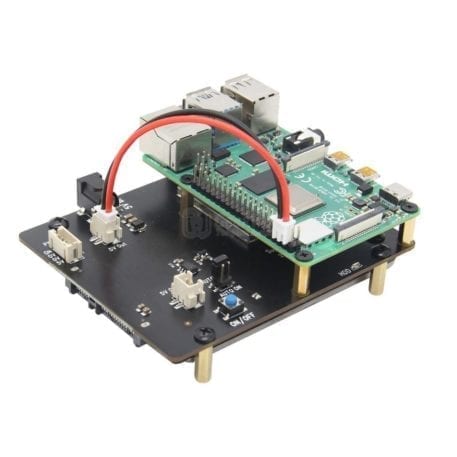

• Ideal storage solution for Raspberry Pi 4 Model B
• UASP supported for Raspberry Pi 4, NOT support TRIM
• Use a shorter USB 3 connector to reduce the overall height
• Use new 4pcs test pins to power each other with raspberry pi 4, no additional wire required
• LED blue indicator indicates drive status
• USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
• Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac

Power Supply Requirement

• Power supply: AC 100 – 240V input 50 / 60Hz, 5V DC 4A output
• DC Power Plug Size : 5.5*2.5mm (The DC jack has been updated to DC5521 jack now!!!)

Based on X735 V2.5 version

Packing List

• 1 x X825 V2.0 Expansion Board
• 1 x USB 3.1 connector
• 2 x M3x6 Screws
• 8 x M2.5×6 Screws
• 4 x Spacer F/F M2.5x14mm

Matching Metal Case

Please refer to X825-C8

User Manual

Difference between Geekworm NAS Family

Pls refer to GEEKWORM NAS Family

Installation Video for X825 V2.0

https://youtu.be/JxUNhIxXgj4

Thanks for the video by DB Tech!
