Waveshare NAS All-In-One Mini-Computer For Raspberry Pi CM4

(1 customer review)

100,43
(80,34 excl. VAT)

Designed til Raspberry Pi Compute Module 4. Personal Network Storage Server. CM4 not included.

Buy your Raspberry Pi Compute Module 4 (CM4) here.

Only 2 left in stock

Description

In the box:

  1. Aluminum alloy case (2inch LCD included) x1

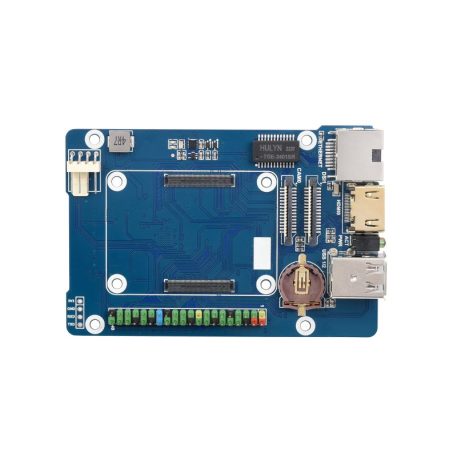

  2. CM4-NAS-Double-Deck x1

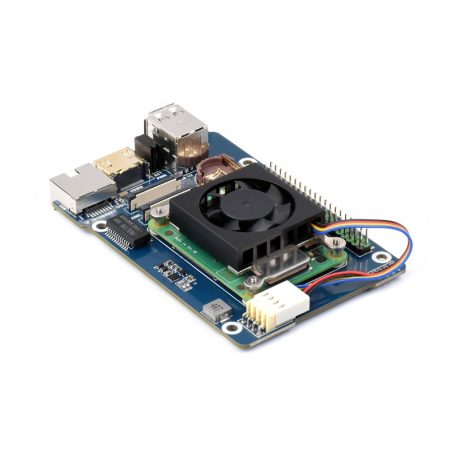

  3. CM4-FAN-3007 (fan screwpack and screwdriver included) x1

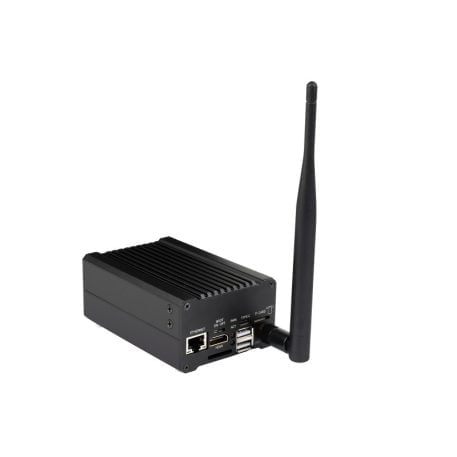

  4. Antenna x1
  5. IPEX to SMA cable ~20cm x1
  6. FPC 50PIN cable ~4cm x1
  7. Screws pack x1
  8. OPTIONS 5V 3A Type C power supply x1
  9. Screwdriver x1

NAS Mini-Computer For CM4

Features At A Glance

  • All-in-one Mini-Computer, mainly designed for home or small home office, but not limited to the above applications
  • Out of the box, no expert knowledge of networking and storage systems required
  • Built-in 2x SATA slots for installing 2.5-inch Solid State Drives
  • 2-inch SPI LCD screen for real-time monitoring the working status of CM4: CPU, RAM, system disk usage, network speed and temperature, etc.
  • Easy to use, convenient to online access the documents, videos, and music at any time

Specifications

PROCESSOR *Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHz
RAM *Customer CM4
EMMC FLASH *Customer CM4
CONNECTIVITYCustomer CM4
Gigabit Ethernet RJ45 connector
2 x USB 2.0 ports
2 x SATA slots (2.5inch SATA)
TF card slot for Compute Module 4 Lite (without eMMC) variants
HDMI × 1, supports 4K 30fps output
OPERATING VOLTAGE5V DC
You can choose and purchase other variants of Compute Module 4 according to your needs



Built-In Dual Hard Drive Slots
Support Large Capacity HDD Storage

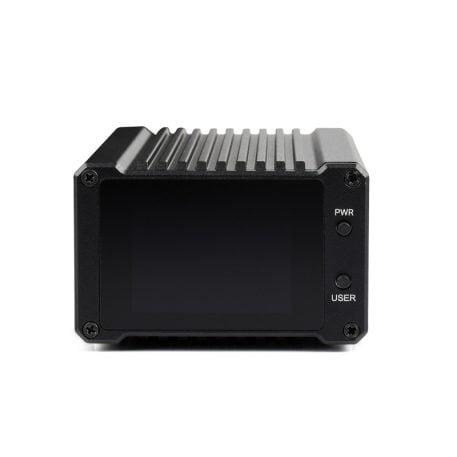

Comes With SPI 2inch LCD Display

For Monitoring The Working Status Of CM4 In Real-Time

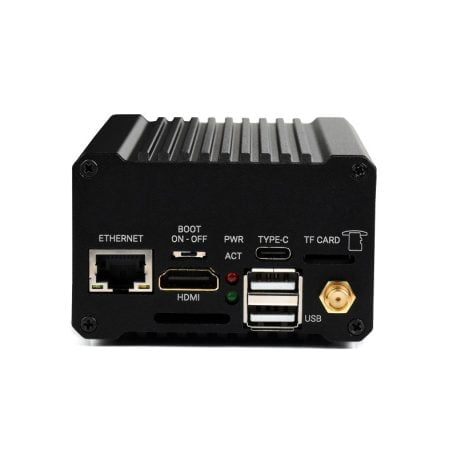

Rich Interfaces

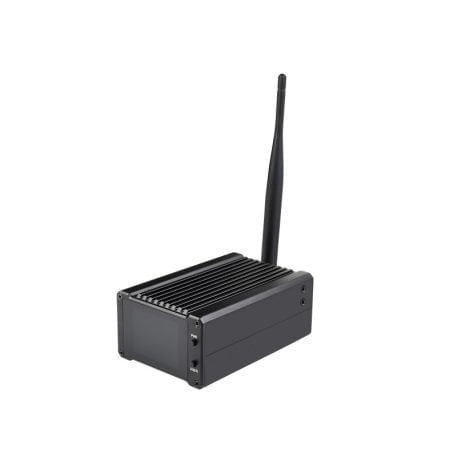

Aluminum Alloy Case Design

Alloy Case For Large Area Heat Dissipation, With Fan Vents And Nonskid Feet At The Bottom, Better Heat Dissipation And More Stable Placement

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Product Show



Dimensions

Additional information

Weight550 g
GTIN / EAN / UPC
Manufacturer Product Number
BrandWaveshare
Country of OriginCN
HS Tariff Code8486204900

1 review for Waveshare NAS All-In-One Mini-Computer For Raspberry Pi CM4

  1. English

    Dunja (verified owner)

    Top Lieferung. Gerät funktioniert einwandfrei. Sauber verarbeitet. Mit der Demo Software ist die Displayanzeige einwandfrei. Die Steuerung des Fan ist etwas umständlich aber lösbar. Der Fan ist zu laut. Die Fan-Lösung sollte man nochmal überdenken, zumal es Passivkühler von Waveshare gibt. Die Wlan Antenne funktioniert nur mit folgendem Code in “config.txt” unter [CM4] dtparam=ant2
