Waveshare Nano Base Board (B) for Raspberry Pi CM4

(21,34 excl. VAT)

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products.

Buy your Raspberry Pi Compute Module 4 (CM4) here.

Only 7 left in stock

SKU: 9908 Category:


Base Board for Compute Module 4 Lite/eMMC

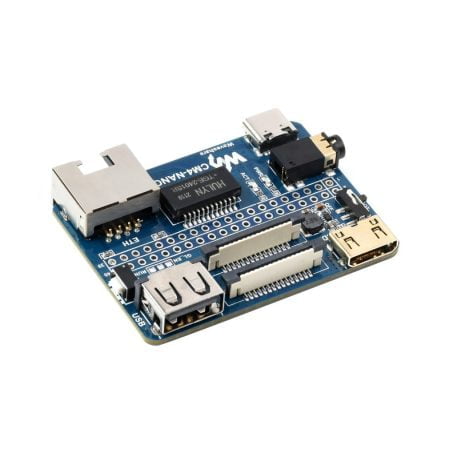

Compact, Yet Complete

Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack…
All In The Compact Body Just As The Size Of CM4

Note: the CM4 is NOT included. Please buy it separately if necessary.

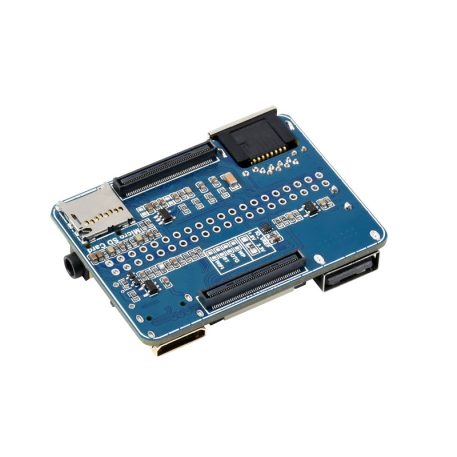

CM4 SOCKETsuitable for all variants of Compute Module 4
NETWORKINGGigabit Ethernet RJ45 connector
CONNECTORRaspberry Pi 40PIN GPIO header × 1
USBUSB 2.0 Type A connector × 1
DISPLAYMIPI DSI port × 1 (15pin 1.0mm FPC connector)
CAMERAMIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)
VIDEOMini HDMI port × 1, supports 4K 30fps output
AUDIO3.5mm jack
STORAGEMicro SD card socket for Compute Module 4 Lite (without eMMC) variants

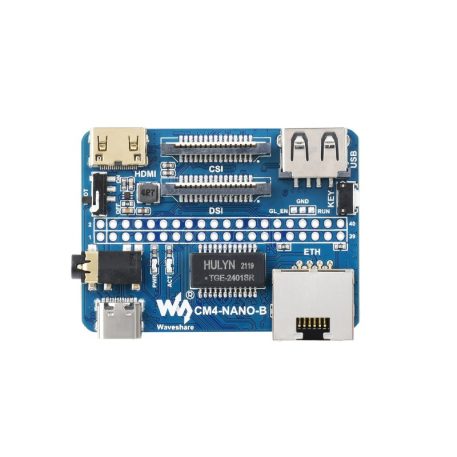

What’s On Board

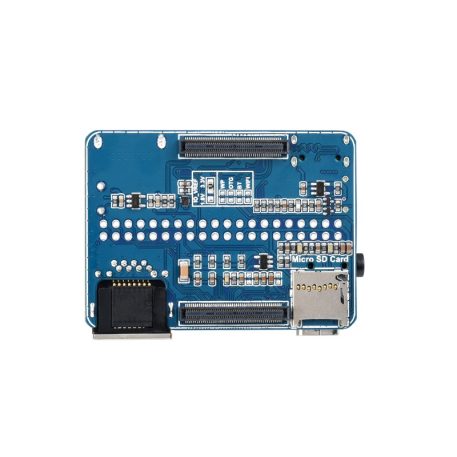

  1. CM4 socket
    suitable for all variants of Compute Module 4
  2. Micro SD card slot
    for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
  3. 40PIN GPIO header
    for connecting sorts of HATs
  4. Gigabit Ethernet RJ45 connector
  5. Power supply / Programming
    5V power supply, or used for eMMC burning
  6. 3.5mm audio jack
  7. User button
  8. USB2.0 connector
    for connecting sorts of USB devices
  1. CSI connector
    MIPI CSI camera interface
  2. DSI connector
    MIPI DSI display interface
  3. MP1658
  4. Mini HDMI connector
    supports 4K 30fps output
  5. BOOT switch
    ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
    OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

Outline Dimensions


Additional information

Weight50 g
Manufacturer Product Number
Country of OriginCN
HS Tariff Code8486204900
