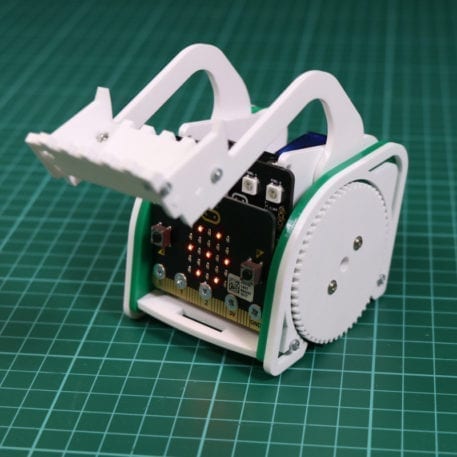

Bulldozer Add-On for :MOVE MINI

Description

Note:

• This kit requires mechanical assembly.
• This kit requires some soldering.

Features:

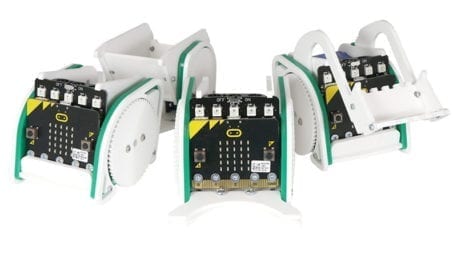

• When attached to :MOVE mini this kit offers a fun introduction to the world of DIY robotics.
• Code it with the Microsoft MakeCode Editor.
• Use in conjunction with an App and control it over Bluetooth.
• Use the radio function and a second microbit as a controller.

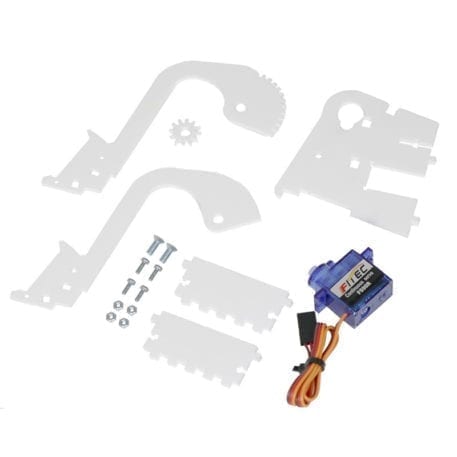

Contents:

• 1 x Set of Buldozer parts.
• 1 x Mini 180 Degree Servo.
• 4 x M2 6mm Pan head steel screw.
• 4 x M2 Hex Full width nut.
• 2 x Counter sunk M3 screw.
• 3 x Straight PCB pin headers (The same pin type found in these pin headers).

Dimensions:

• Length: 110mm.
• Width: 50mm.
• Height: 75mm.

Video:

Requires:

• 1 x :MOVE mini for the BBC microbit kit.
• 1 x BBC microbit.
• Screwdriver.

Resources:

• Example code and usage instructions.
• Guide For Kitronik Custom MakeCode Editor Servo Blocks.
• Getting Started With The Servo:Lite board.
• Guide For Controlling 3 Servos With The Servo:Lite board.
• Guide for Controlling :MOVE mini With The microbit Radio.
• Guide For Adding Bluetooth Remote Control To :MOVE mini.
• WS2812B Datasheet.
• Servo:Lite board Datasheet.
• Build Instructions.
