IMX219 Camera – 160 degree FoV

Description

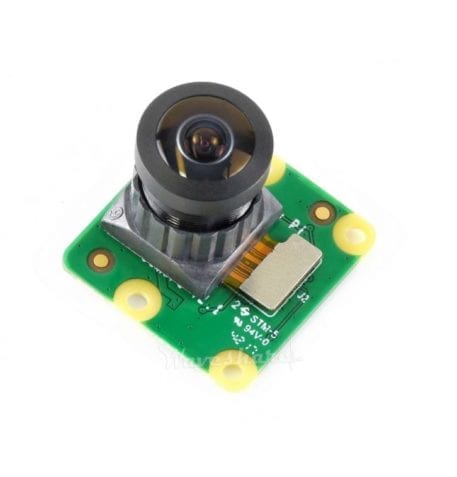

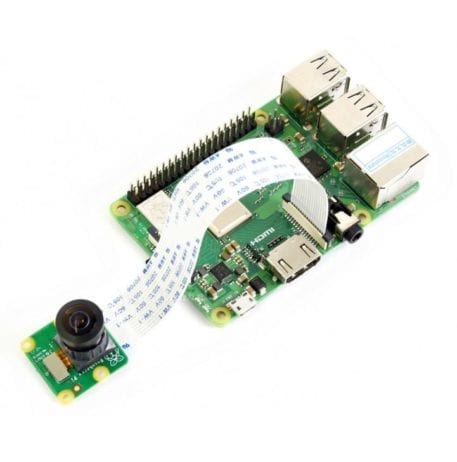

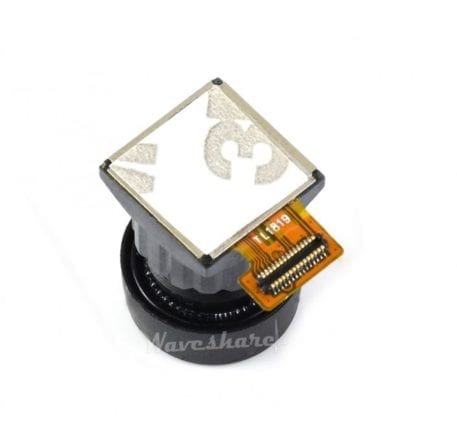

Note: this is a raw camera module without driver PCB, the Raspberry Pi and Raspberry Pi Camera Board V2 PCB in the photos are NOT included.

Features

• Sony IMX219 8-megapixel sensor
• Camera specifications
  • CMOS size : 1/4inch
  • Aperture (F) : 2.35
  • Focal Length : 3.15mm
  • Angle of View (diagonal) : 160 degree (while the original V2 camera is only 62.2 degree)
  • Distortion: < 14.3%
  • Focusing Range: 20cm ~ infinity
• 3280 x2464 still picture resolution
• Support 1080p30, 720p60 and 640x480p90 video record

How to Use

Dimensions

Development Resources

3D Drawing: IMX219-D160_3D_Drawing.zip
