Metal Case for 2.5″ SATA Board and Raspberry Pi 4

Description

Overview

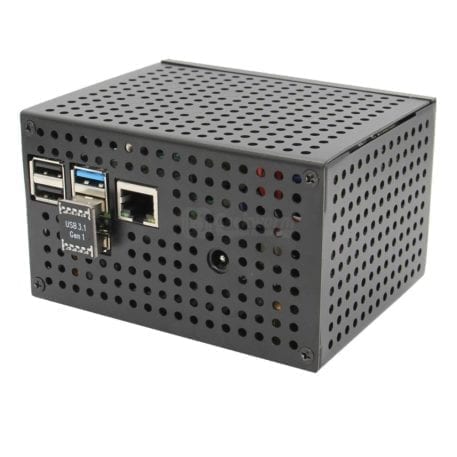

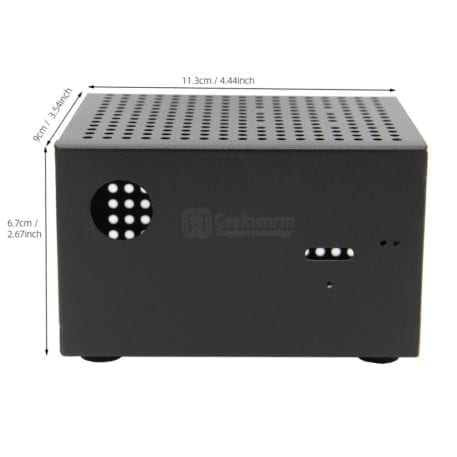

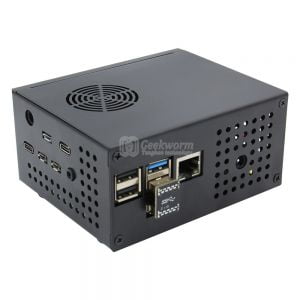

This is a new X825-C8 metal case with power control switch and mute cooling fan which is designed for Raspberry Pi 4 Model B with the latest X825 V2.0 2.5 inch SATA HDD/SSD storage board, it is a perfect choice for X825 V2.0 SSD/HDD storage board user. Recommend to use the X735 safe shutdown&Cooling fan board over Raspberry Pi.

Note:

1. The X825-C8 only support the X825 V2.0 version, does not support X825 V1.5 version.
2. The WiFi or Bluetooth signal will be affected if use the metal case, we advice that you use ethernet network or 5.8G wifi AP to replace the 2.4G wifi to test.

Features

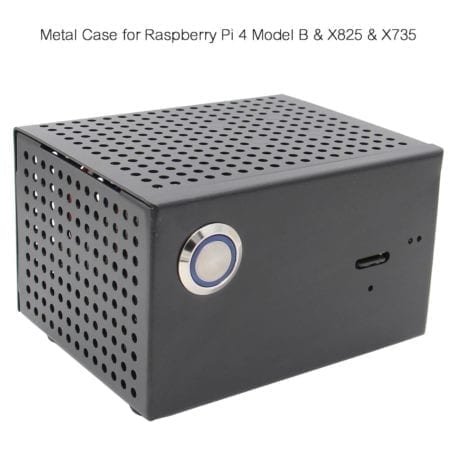

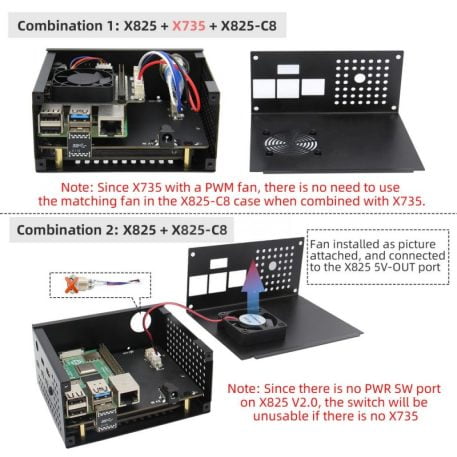

• Power switch with beautiful LED indicator to control the power of X825 V2.0 with X735 and the Raspberry Pi 4 Model B;

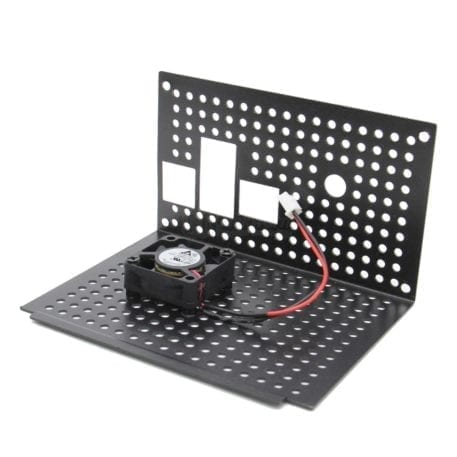

• Support super mute cooling fan, round cooling holes on both side of the case, provides good heat dissipation;

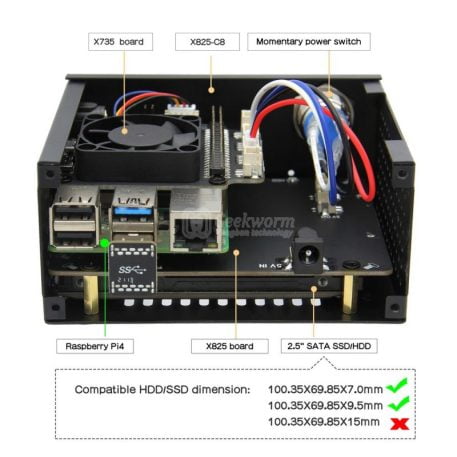

• Support Max 9.5MM thickness 2.5 inch SATA HDD/SSD(Do not support 15mm thickness 2.5 inch SATA HDD/SSD)
• Reserved Side Slot(Interface) for GPIO/FFC Cable
• Reserved Slot for X735 DC power Port and X735 microusb and Type-C port

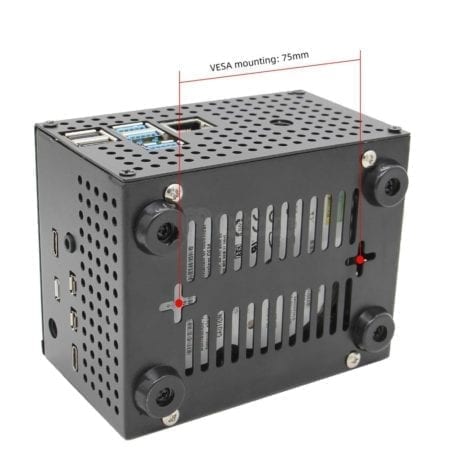

• High quality metal material with surface galvanized process;
• Support super mute dc 5v cooling fan;

4010 Fan

• Bearing: Sleeve
• Voltage: 5V DC
• Working Current: 0.06A
• Noise Level: 23.1dBA-26.1dBA
• Speed: 4200 RPM
• Dimensions:40x40x10mm
• Cable length: 11cm/4.33inch
• Net Weight:13g
• Temperature range: -10+80°C

For Use With

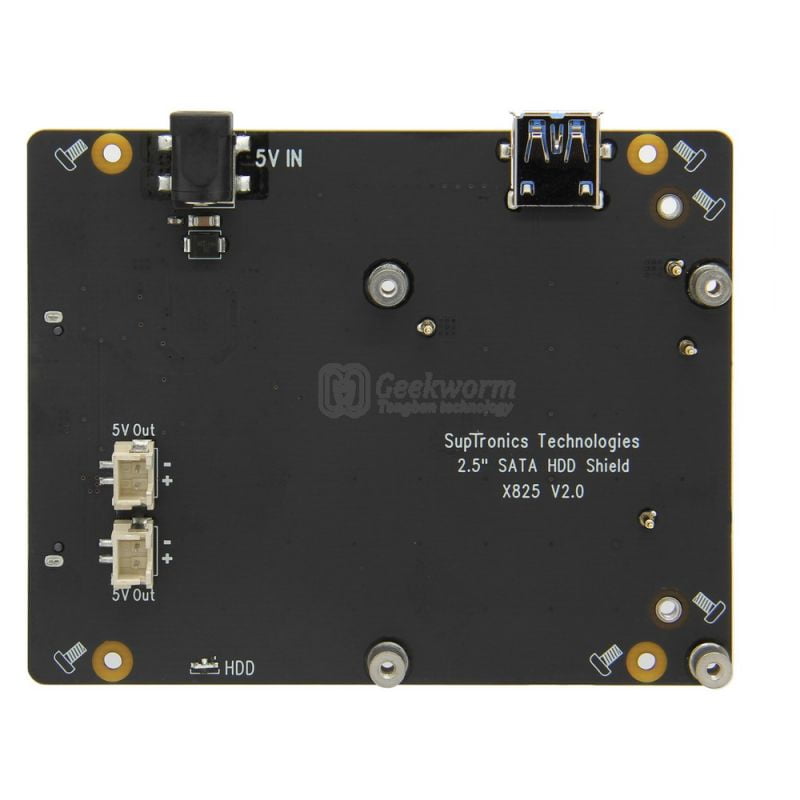

• X825 V2.0 Version 2.5″ SATA HDD/SSD Shield (Not Support X825 V1.5 Version)

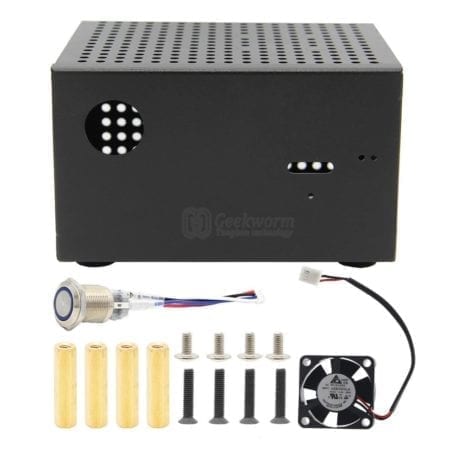

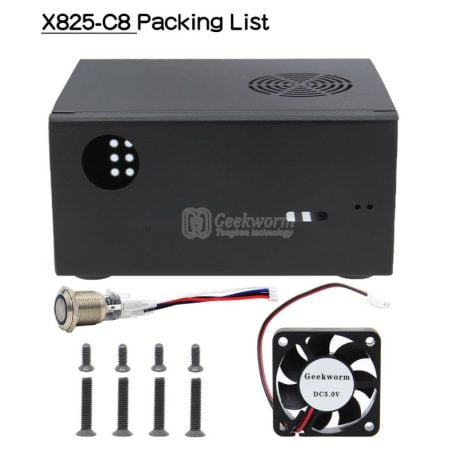

Packing List

• 1 x X825-C8 Metal Case for X825 V2.0
• 1 x Power Control Switch
• 1 x 4010 Cooling Fan (Noise: 18dB)(with 4 pieces of screws)

User Manual

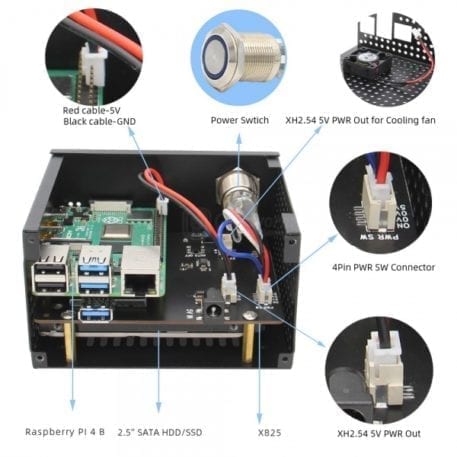

Installation Video for X825 V2.0

https://youtu.be/JxUNhIxXgj4
