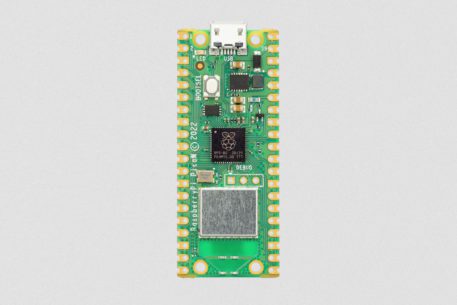

Raspberry Pi Pico W

• • RP2040 microcontroller with 2MB of flash memory
  • On-board single-band 2.4GHz wireless interfaces (802.11n)
  • Micro USB B port for power and data (and for reprogramming the flash)
  • 40 pin 21mmx51mm ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
    • Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
    • 23 GPIO are digital-only, with three also being ADC capable
    • Can be surface mounted as a module
  • 3-pin ARM serial wire debug (SWD) port
  • Simple yet highly flexible power supply architecture
    • Various options for easily powering the unit from micro USB, external supplies or batteries
  • High quality, low cost, high availability
  • Comprehensive SDK, software examples and documentation

For full details of the RP2040 microcontroller please see the RP2040 Datasheet book. Key features include:

• Dual-core cortex M0+ at up to 133MHz
  • On-chip PLL allows variable core frequency
• 264kByte multi-bank high performance SRAM
• External Quad-SPI Flash with eXecute In Place (XIP) and 16kByte on-chip cache
• High performance full-crossbar bus fabric
• On-board USB1.1 (device or host)
• 30 multi-function general purpose I/O (four can be used for ADC)
  • 1.8-3.3V I/O voltage
• 12-bit 500ksps analogue to digital converter (ADC)
• Various digital peripherals
  • 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
  • 1 × timer with 4 alarms, 1 × real time clock
• 2 × programmable I/O (PIO) blocks, 8 state machines in total
  • Flexible, user-programmable high-speed I/O
  • Can emulate interfaces such as SD card and VGA
