reTerminal – CM4 HMI 5″

(214,14 excl. VAT)

Meet reTerminal, The Next Generation of Human Machine Interface with you, and also a new member of our reThings family. This future-ready Human-Machine Interface (HMI) device can easily and efficiently work with IoT and cloud systems to unlock endless scenarios at the edge.

Out of stock

Join the waitlist to be emailed when this product becomes available

SKU: 9806 Category:



  • Integrated modular design with high stability and expandability
  • Powered by Raspberry Pi Computer Module 4 with 4GB RAM & 32GB eMMC
  • 5-Inch IPS capacitive multi-touch screen at 1280 x 720 and 293 PPI
  • Wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE
  • High-speed expansion interface and rich I/O for more expandability
  • Cryptographic co-processor with secure hardware-based key storage
  • Built-in modules such as accelerometer, light sensor, and RTC
  • Gigabit Ethernet Port and Dual USB 2.0 Type-A ports

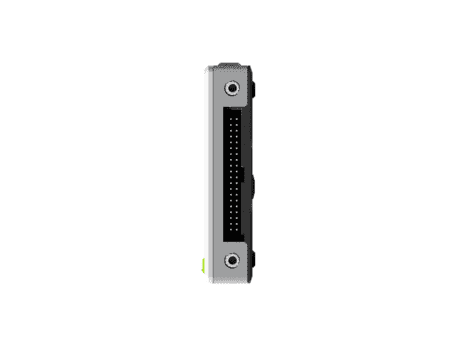

  • 40-Pin Raspberry Pi compatible header for IoT applications
  • reTerminal is Microsoft Azure Certified


reTerminal is powered by a Raspberry Pi Compute Module 4 (CM4) which is a Quad-Core Cortex-A72 CPU running at 1.5GHz and a 5-inch IPS capacitive multi-touch screen with a resolution of 720 x 1280. It has sufficient amount of RAM (4GB) to perform multitasking and also has sufficient amount of eMMC storage (32GB) to install an operating system, enabling fast boot-up times and a smooth overall experience. It has wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE.

reTerminal consists of a high-speed expansion interface and rich I/O for more expandability. This device has security features such as a cryptographic co-processor with secure hardware-based key storage. It also has built-in modules such as an accelerometer, light sensor, and an RTC (Real-Time Clock). reTerminal has a Gigabit Ethernet Port for faster network connections and also has dual USB 2.0 Type-A ports. The 40-pin Raspberry Pi compatible header on the reTerminal opens it for a wide range of IoT applications.

reTerminal is shipped with Raspberry Pi OS out-of-the-box. So, all you have to do is connect it to power and start building your IoT, HMI, and Edge AI applications right away!

Also, reTerminal is Microsoft Azure Certified!


There are limitless possibilities with the reTerminal. It can be placed at the heart of an IoT/Edge system where you could connect a number of sensors to the reTerminal via different wireless protocols such as LoRa, Zigbee, Wi-Fi, Bluetooth, Sub-1G, and the reTerminal connected to the cloud via Ethernet, Wi-Fi, 5G/ 4G or connected to an edge server to store and process the data.

On the other hand, it has a modular design where you can expand this system by connecting different modules to the reTerminal via the 40-Pin GPIO connectors and enable even more applications. You can easily plug modules such as mic array & speaker, camera, industrial I/O, LoRaWAN, 5G/4G, and PoE to realize your ideas! It will be supported by an active community as well!

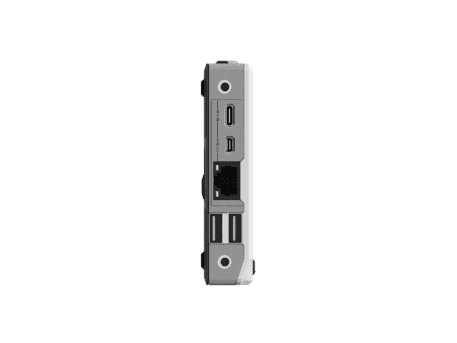

reTerminal is packed with rich interfaces on the side of the device while keeping the design to a minimum. It has a USB Type-C port for power input, a Gigabit Ethernet port for faster and reliable network access, a micro-HDMI interface that supports video output at 4K resolution with a frame rate of 60fps, and also has 2 USB Type-A ports.

Furthermore, it also has a high-speed expansion interface with a PCIe 1-lane Host, Gen 2 (5Gbps), USB 2.0 port, 28 GPIOs, and PoE. You can use this interface for industrial and more advanced scenarios!

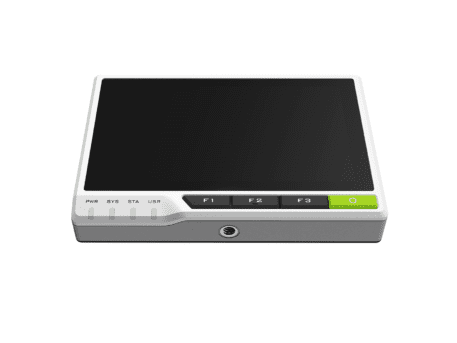

reTerminal also features a 5-Inch IPS capacitive multi-touch screen with a resolution of 1280 x 720 and a pixel density of 293 PPI, providing high definition and rich colors. This resolution is 1.6 times higher than the most common resolution for 5-inch displays, which is 800 x 480. Also, comparing to TN displays, the IPS display on the reTerminal offers better viewing angles as well!

reTerminal has security features such as a cryptographic co-processor with secure hardware-based key storage. It also has protected storage for up to 16 keys, certificates, or data. It provides hardware support for symmetric sign, verify, key agreement – ECDSA. It has hardware support for symmetric algorithms, networking key management and secure boot.


  • Embedded Linux Terminal Device
  • Smart Factory
  • Smart Warehouse
  • Smart Home
  • Machine Learning and Edge AI Applications
  • IoT Controller
  • Hand-Held Device


PlatformProcessorBroadcom BCM2711 quad-core Cortex-A72 (ARM v8)
Frequency64-bit SoC @ 1.5GHz
TechnologyLPDDR4 with on-die ECC
WirelessWi-Fi2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
BluetoothBluetooth 5.0, BLE
DisplayLCD5-inch 720×1280 LCD
Touch PanelCapacitive touch panel (support multi-touch)
VideoHDMI1 x Micro HDMI output (up to 4Kp60 supported)
CSI1 x 2-lane MIPI CSI camera interface
MultimediaH.265 (4Kp60 decode)
H.264 (1080p60 decode,1080p30 encode)
OpenGL ES 3.0 graphics
Built-In ModulesReal-Time ClockNXP Semiconductors PCF8563T
Low backup current; typical 0.25μA at VDD = 3.0 V and Temperature = 25 ℃
AccelerometerSTMicroelectronics LIS3DHTR
16-bit, ±2g/±4g/±8g/±16g dynamically selectable full scale
EncryptionMicrochip ATECC608A
Secure Hardware-Based Key Storage, Asymmetric Sign, Verify, Key Agreement
Light SensorLevelek LTR-303ALS-01
Digital light sensor
Internal IO
Microchip MCP23008-E
Buzzer≥85dB @10cm 2700±300Hz
External I/OGPIOsUp to 5 × UART
Up to 5 × I2C
Up to 5 × SPI
1 × SDIO interface
1 × DPI (Parallel RGB Display)
1 × PCM
1 × PWM channel
Up to 3× GPCLK outputs
Vertical expansion
1 × PCIe 1-lane Host, Gen 2 (5Gbps)
1 × USB 2.0 port (highspeed)
26 x GPIOs
PowerRecommended5V@4A DC
TemperatureOperating Temperature0 – 70°C( For the LCD Screen: 0 – 60°C)

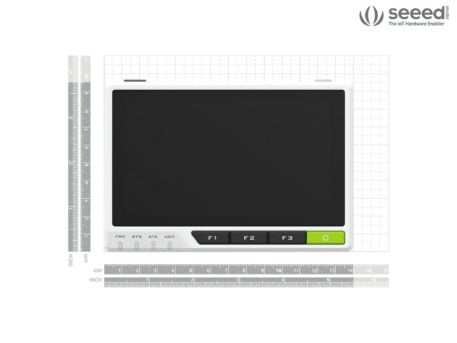

MechanicalDimensions140mm x 95mm x 21mm

Hardware Overview

Part List

1 x reTerminal



Learn how to get started with the reTerminal and turn your ideas into a reality!

Additional information

Weight1000 g
Manufacturer Product Number
Country of OriginCN
HS Tariff Code8471419000
