Contents:
- CM4-DUAL-ETH-4G/5G-BASE x1
- Metal case (top and bottom) x1
- Fan-4010-PWM-12V x1
- OPTIONS 5V 3A Type-C power adapter x1
- Screwdriver x1
- Antenna connector rubber plug 4pcs x1
- Screws pack x1
Dual GigE 5G/4G Computer Based On CM4
Designed For Raspberry Pi Compute Module 4
Waveshare CM4-DUAL-ETH-4G/5G-BASE Inside, Fast And Easy To Build A Mini-Computer
Communication Module Compatibility
Compatible With Communication Modules With M.2 B KEY Interface
An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2 , SIM8202G-M2 , SIM8200EA-M2
Dual GigE 5G/4G Base Inside
Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC
for reference only, CM4 and communication module are NOT included.
Base Board Specifications
| CM4 SOCKET | suitable for all variants of Compute Module 4 |
|---|---|
| NETWORKING | Dual Gigabit Ethernet RJ45 |
| M.2 B KEY, for connecting 5G / 4G module | |
| Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication | |
| USB | USB 3.2 Gen1 × 2 |
| PIN HEADER | Raspberry Pi 40PIN GPIO header |
| DISPLAY | MIPI DSI port (15pin 1.0mm FPC connector) |
| CAMERA | MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector) |
| VIDEO | HDMI × 2, supports 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| STORAGE | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
| FAN HEADER | 5V/12V (12V by default), allows speed adjustment and measurement |
| POWER INPUT | 5V/2.5A |
| DIMENSIONS | 99.6 × 87.0mm |

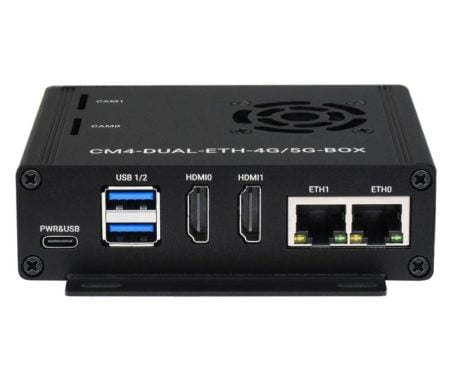

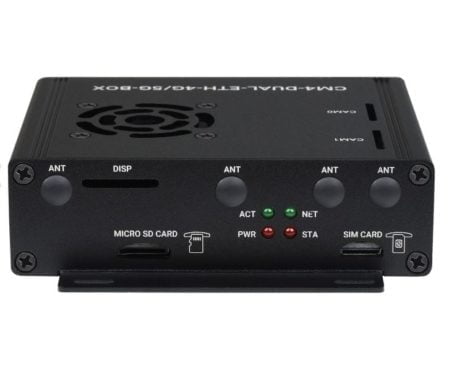

Rich Interfaces
Providing Interfaces Including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB/M.2 B KEY
Precise Cut-Out With Clear Label
Each Cut-Out Is Completely Aligned With The Connector

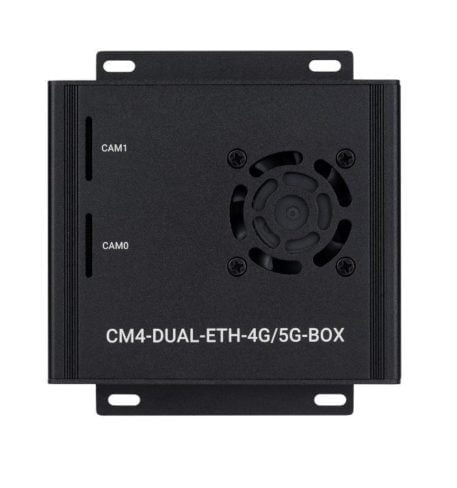

Cooling Fan Included
Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

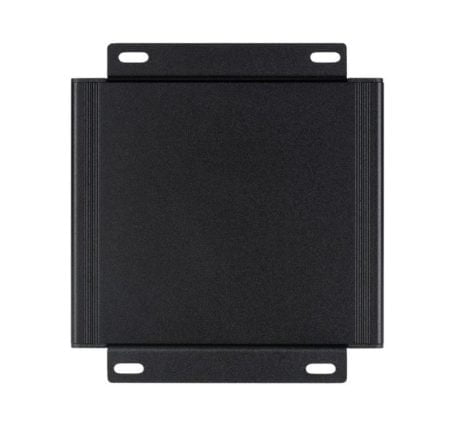

Wall Mount Support
Wall Mount Holes On Two Sides, Handy For Mounting

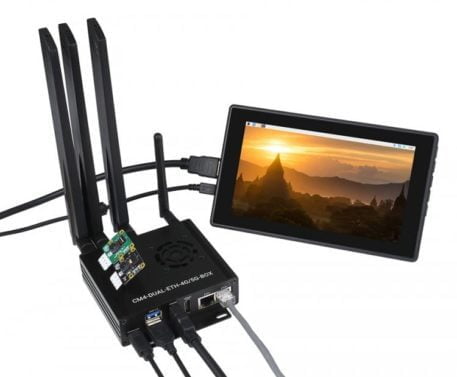

Application Examples
Suitable For Raspberry Pi Telecommunication Projects, Or Other Industrial Applications
for reference only, display, cameras, and antenna are NOT included.
Outline Dimensions
