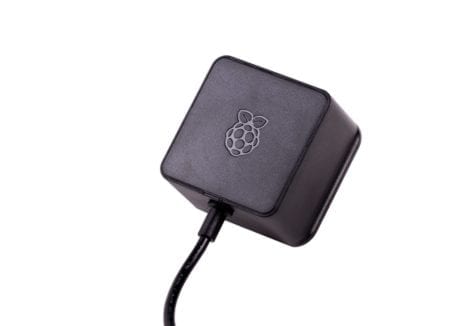

Officiel Raspberry Pi 15W USB-C Strømforsyning – EU – 5V 3A – Sort

Beskrivelse

Funktioner

• Sort
• EU stik
• 5V, 3A
• 1,5 meter kabel

Specifikationer

Output

Output voltage: +5.1V DC
Minimum load current: 0A
Nominal load current: 3.0A
Maximum power: 15.3W
Load regulation: ±5%
Line regulation: ±2%
Ripple & noise: 120mVp-p
Rise time: 100ms maximum to regulation limits for DC outputs
Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
Protection: Short circuit protection
Overcurrent protection
Over temperature protection

Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%)
72% minimum at 10% load

Output cable: 1.5m 18AWG
Output connector: USB Type-C

Input

Voltage range: 100-240Vac (rated)
96-264Vac (operating)
Frequency: 50/60Hz ±3Hz
Current: 0.5A maximum
Power consumption (no load): 0.075W maximum
Inrush current: No damage shall occur and the input fuse shall not blow
