Beskrivelse
It is fully compatible with the Raspberry Pi 4 Linux distribution and offers the full Raspberry Pi GPIO connector for further expansion.
In addition to the standard micro-SD card, there is an internal NVMe SSD M.2 slot (SSD optional).
*A power supply, cable, and a Raspberry Pi Hat adapter are included in the product. The keyboard and the mouse are not.
Built around the Raspberry Pi® CM4
The AIO-CM4-156 is an all-in-one desktop computer based on Raspberry Pi CM4. It features a 15.6-inch IPS display with a 2mm protective Armoplated Glass (optional capacitive touchscreen). The display has a maximum brightness of 250nit.

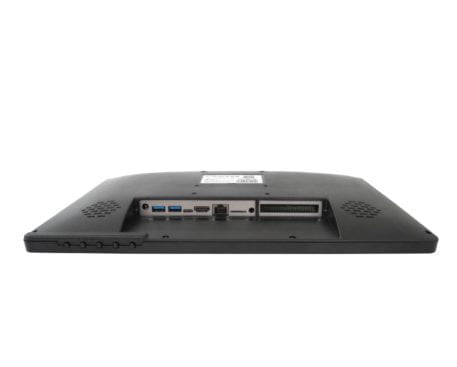

Concerning hardware, it offers one TF card interface, one USB C connector, two USB 3.0 channels.
The product comes with the CM4 module that features 4GB RAM DDR, WiFi, and no eMMC. CM4104000. If your project requires it we can add an eMMC.
Versatile Solution
The AIO-CM4-156 is a truly versatile solution – it can be easily used in industrial applications, but also educational programs and projects. It is an ideal tool for a student, for everyday activities, as well as for experimenting and creating prototypes.
Raspberry Pi core
The AIO-CM4-156 has Raspberry Pi CM4 at its core. You can download the official Raspberry Pi Linux distribution (Raspberry Pi OS) and turn it on without any modification. There is an available I/O connector that is 100% compatible with any Raspberry Pi cape, or extensions, making the AIO-CM4-156 a perfect fit with your existing tools.

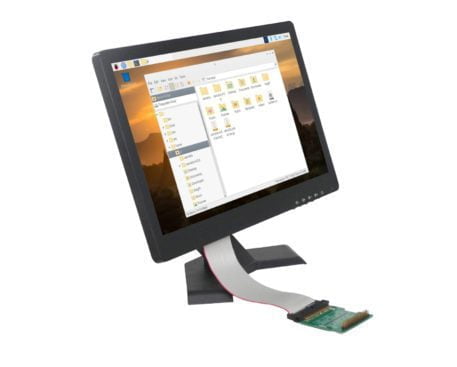

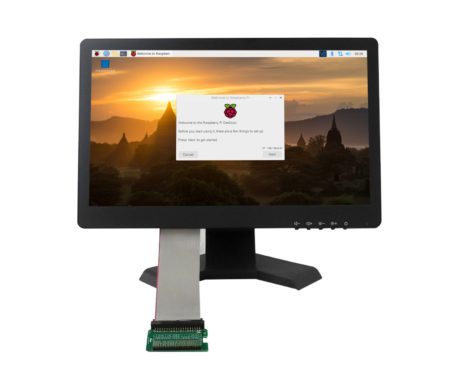

The product also comes with an adapter, with a standard Raspberry Pi HAT pinout, to add more flexibility to your project. It offers a convenient way to develop and test your hardware with all the connectors at hand. You can learn more about it in the product manual.
Software and OS
The AIO-CM4-156 is fully compatible with the Raspberry Pi 4 Linux distribution (Raspberry Pi OS), there’s no need for extra software drivers. It comes pre-installed with Debian OS, but you can install any other OS of your choice. Install the OS on the TF card just like any other common Raspberry Pi 4.
If you have any doubts, read our Product Selection Guide.
Downloads
Software
Hardware
Features
| Weight | 1600 g |
|---|---|
| Dimensions | 374 × 303 × 123 mm |
| Dimensions Without Stand | 374 x 238 x 33 mm |
| Form-factor | All-In-One |
| CPU | Cortex-A72 (Raspberry Pi) |
| Display Size (inch.) | 15.6″ |
| Resolution | 1920*1080 |
| Brightness (cd/m²) | 250nit is maximum brightness, changable up/down |
| Touch Screen | Ten-Point Capacitive Touch with 1.1mm Armored Glass. |
| Storage | TF card slot for boot. Internal M.2 NVMe connector for SSD card. |
| Micro SD card socket | For use only with CM4 Lite modules |
| USB | 2 x USB 3.0 Host connector, 1Type-C USB Slave connector. |
| GPIO/Wiegand | Raspberry Pi 40-pin GPIO connector. |
| HAT connector | Standard Raspberry Pi 40-way HAT connector. |
| Ethernet | 1x Giga LAN |
| Camera | Camera on the front panel, NOT mounted by default |
| Audio | 2W internal stereo speaker, 3.5mm audio Out connector. |
| Buzzer | Yes |
| RTC | High accuracy internal RTC (keep track of time one week after power off) |
| OS | Debian, Ubuntu |
| Power Input | 12V DC |
| Power Consumption | 8.4W |
| Current @ 12V | 700 mA max |
| Working Temperature | 0℃~50℃ |
| Plastic Case Color | Black |
