Features
- Takes advantage of the natural heat conductivity and dissipation of the aluminum augmented by the built-in controllable fan to cool down both the Raspberry Pi and hard disks
- Multi-function power button to allow for seamless integration with the case
- Programmable OLED Display is neatly situated under the button to display the following:
- IP address
- CPU status
- Storage status
- Programmable OLED Display is neatly situated under the button to display the following:
- 4-Bay SATA Hard Drive Ports that can fit two 3.5″ SATA HDD and two 2.5″ SATA HDD/SDD
- Real-time Clock is built-in to make scheduling tasks possible

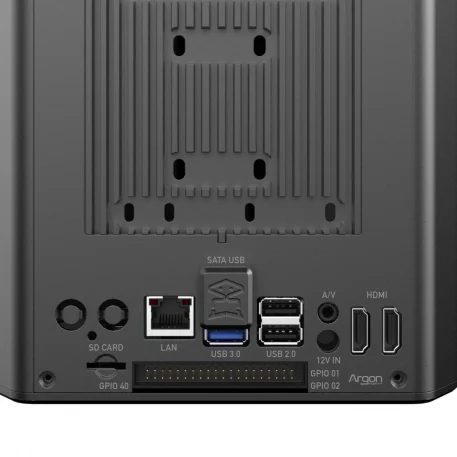

- All ports are in one side for neat cable management
- microSD cards can be ejected by pushing them on the same port
- Powered by 12V 5A Power Supply (PSU included)
NOTE: Raspberry Pi 4 and Hard Drives are NOT included
Specifications
| Operating System | |
|---|---|
| Open Source | All Rapsberry Pi Operating Systems (Raspberry Pi OS, Open Media Vault,Twister OS, Ubuntu for Raspberry Pi, etc.) |
| CPU | |
| Raspberry Pi 4 Model B | Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64 -bit SoC @ 1.5 GHz |
| Memory | |
| Raspberry Pi 4 Model B | 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM (depending on model) |
| Storage | |
| Drive Bays | 4 |
| Compatible Drive Type | 2.5″ SATA HDD (Max 4 drives) |
| 2.5″ SATA SSD (Max 4 drives) | |
| 3.5″ SATA HDD (Max 2 drives) | |
| Maximum Single Volume Size | 18TB |
| External Ports | |
| Raspberry Pi 4 Model B | RJ-45 1GbE LAN port (1) |
| USB 3.0 (2) | |
| USB 2.0 (2) | |
| Raspberry Pi 40 pin GPIO header | |
| HDMI ports – up to 4kp60 supported (2) | |
| 4-pole stereo audio and composite video port (1) | |
| Micro-SD card slot (1) | |
| Others | |
| OLED System Display | Multi-mode (upon installation of script – software controlled) |
| System Fan | 60 mm x 60 mm Brushless Motor |
| Fan Speed Mode | Multi-mode (upon installation of script) |
| Safe Shutdown Power Button | |
| Scheduled ON / OFF | Thru the Built-in RTC (upon installation of script) |
| Power Supply Unit | 60 Watts |
| AC Input Power Voltage | 100V to 240V AC |
