PoE Ethernet / USB HUB BOX til Raspberry Pi Zero

299,00 DKK inkl. moms

PoE Ethernet / USB HUB BOX For Raspberry Pi Zero Series, 3x USB 2.0 Ports, 802.3af-Compliant.

Kun 5 tilbage på lager

Varenummer: 9833 Kategorier: , ,

Beskrivelse

Contents:

  1. PoE/ETH/USB HUB HAT kit x1
  2. ABS case x1
  3. Rubber feet 4PCS x1
  4. Screws pack x1



PoE Ethernet / USB HUB BOX For Zero

Dull polish surface, well designed, nice & dust-proof

PoE 802.3af-Compliant Ethernet Port | 3x USB 2.0 Ports

Features At A Glance

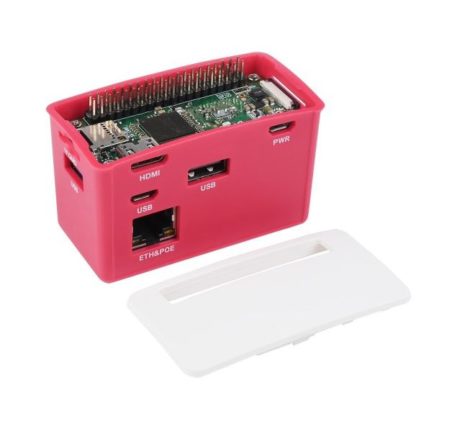

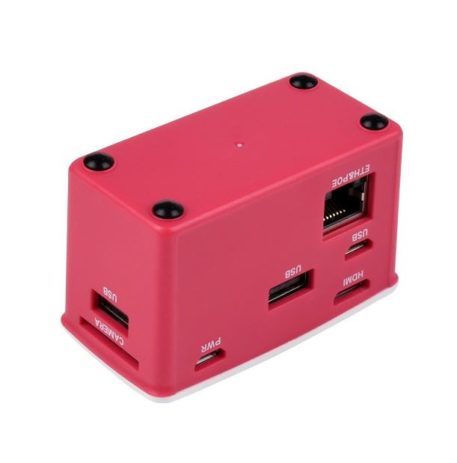

The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.

  • Designed for Raspberry Pi Zero, compatible with Zero series boards
  • Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
  • PoE (Power over Ethernet) feature, 802.3af-compliant
  • Fully isolated SMPS (Switch Mode Power Supply)
  • 3x extended USB ports, compatible with USB 2.0 / 1.1
  • Angle rounded design, smooth hand feeling, “simple snap” case lid
  • Quality ABS material, dull polish surface, anti-fingerprint
  • Comes with two different lids, changing as you like
Specifications
POE POWER INPUT37V ~ 57V DC in
POWER OUTPUT5V 2.5A DC out
NETWORK STANDARDIEEE 802.3af-compliant PoE
DIMENSIONS72.80 × 37.50 × 45.80 mm
Compatible With Raspberry Pi Zero Series

Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play



3x Extended USB 2.0 Ports

USB1 ~ USB3, Compatible With USB 2.0 / 1.1

Extended Ethernet Port

USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

Two Different Lids, Changing As You Like

“Simple Snap” Design, Easy To Change, Allows Attaching Other Zero HATs

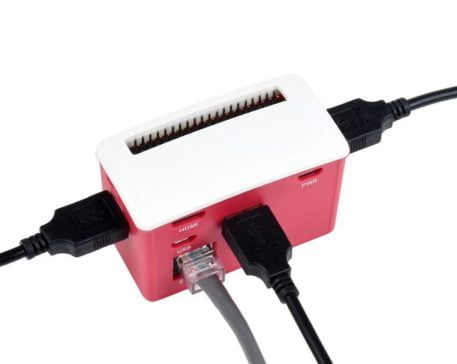

Application Example

Raspberry Pi Zero is NOT included.
Outline Dimensions



Resources & Services
