Beskrivelse
OBS! Raspberry Pi HQ Camera kræver en linse/objektiv. Se vores Raspberry Pi HQ Linser her.
Raspberry Pi HQ Camera giver et alternativ til Raspberry Pi Camera Board v2 til industrielle og forbrugere, til for eksempel sikkerhedskameraer, der kræver høj kvalitet og/eller integration med specialistoptik. Den er kompatibel med alle modeller af Raspberry Pi-computeren fra Raspberry Pi 1 Model B og fremefter ved hjælp af den nyeste softwareudgivelse.

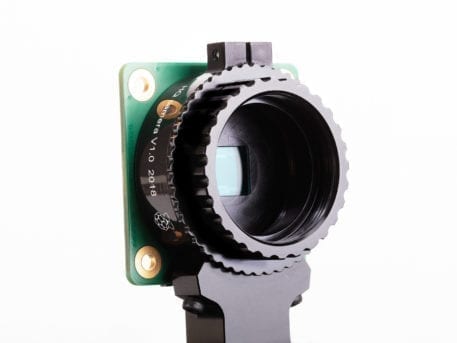

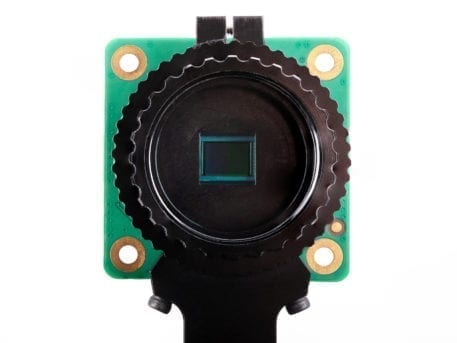

Pakken omfatter et board, der bærer en Sony IMX477-sensor, et FPC-kabel til forbindelse til en Raspberry Pi-computer, et sleben aluminium linseholder med integreret tripod mount og fokusjusteringsring og en C til CS-monteringsadapter.
Specifications

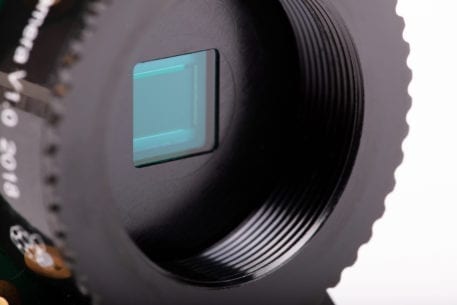

- Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
- Output: RAW12/10/8, COMP8
- Back focus length of lens: 2.6mm–11.8mm (M12 Mount variant), 12.5mm–22.4mm (CS Mount variant)
- Lens sensor format: 1/2.3” (7.9mm) or larger
- IR cut filter: Integrated
- Ribbon cable length: 200 mm

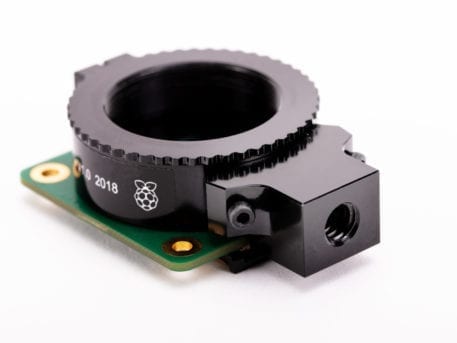

- Tripod mount: 1/4”-20
Cable compatibility

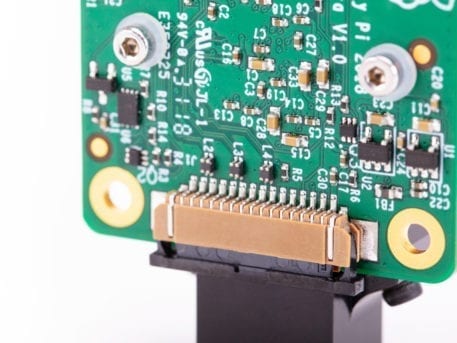

All models of Raspberry Pi Zero require a Raspberry Pi Zero camera cable to connect to the Raspberry Pi High Quality Camera; the standard cable supplied with the camera is not compatible with the smaller Raspberry Pi Zero camera connector. Suitable cables are available at low cost from many Raspberry Pi Approved Resellers, and are supplied with the Raspberry Pi Zero Case.

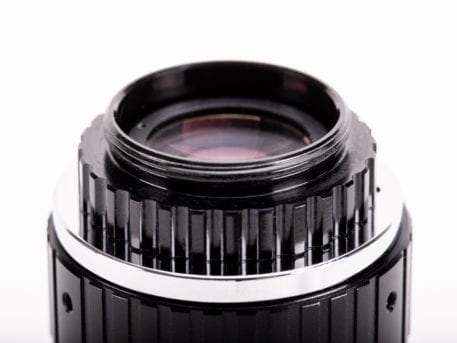

High Quality Camera CS Mount: fitting CS- and C-mount lenses
The High Quality Camera CS Mount variant is designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses. The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses.
Documents
- Raspberry Pi High Quality Camera product brief
- Raspberry Pi High Quality Camera CS Mount mechanical drawing
- Raspberry Pi High Quality Camera M12 Mount mechanical drawing
- Example fitting instructions for a typical C-mount lens
- Example fitting instructions for a typical CS-mount lens
- Raspberry Pi High Quality Camera documentation
Compliance
The Raspberry Pi High Quality Camera has undergone extensive compliance testing and meets a number of regional and international standards.
View and download relevant certificates and conformity documents.
