Beskrivelse
Tilkøb evt. et Raspberry Pi 4 Starter Kit eller Pi 400 Kit som base for nemt at komme i gang med programmering af Raspberry Pi Pico.
Funktioner

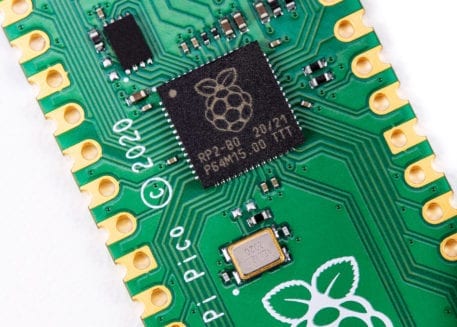

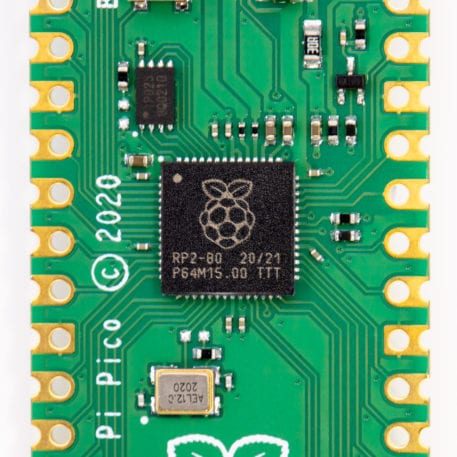

- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
- 264kB of SRAM, and 2MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 Host and Device support
- Low-power sleep and dormant modes
- Drag & drop programming using mass storage over USB
- 26 multi-function GPIO pins
- 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating point libraries on-chip
- 8×Programmable IO (PIO) state machines for custom peripheral support
Dokumenter
Raspberry Pi Pico Datasheet
An RP2040-based microcontroller board
RP2040 Datasheet
A microcontroller by Raspberry Pi
Hardware design with the RP2040
Using the RP2040 microcontroller to build boards and products
Getting Started with Raspberry Pi Pico
C/C++ development with the Pico and other RP2040-based microcontroller boards
Pico C/C++ SDK
Libraries and tools for C/C++ development on the RP2040 microcontroller
Pico Python SDK
A MicroPython environment for the RP2040 microcontroller
Læs mere på https://www.raspberrypi.org/documentation/pico/getting-started
Nicolai J. Andersen (verificeret ejer) –
Hurtig levering med DAO Home.
RPi Pico virker både med CircuitPython og Arduino IDE.

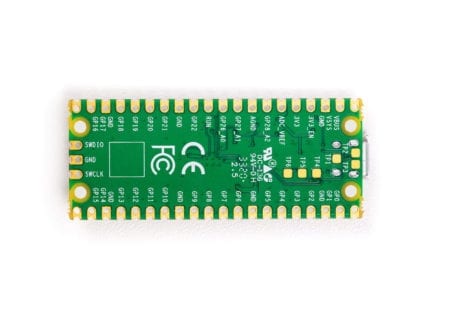

På bagsiden findes TP1 til TP6:
TP1: GND
TP2: USB Data –
TP3: USB Data +
TP4: GPIO23/SMPS PS pin (do not use!)
TP5: GPIO25/LED (not recommended to be used!)
TP6: BOOTSEL
