2-Kanals Isoleret CAN FD HAT til Raspberry Pi

599,00 kr.
(479,20 kr. eksl. moms)

Waveshare. CAN FD Support, Multi Onboard Protection Circuits.

Kun 5 tilbage på lager

Varenummer (SKU): 9820 Kategorier: , Kompatibilitet: ,

Beskrivelse

Contents:

  1. 2-CH CAN FD HAT x1
  2. 2×20PIN female header x1
  3. Standoffs pack (2pcs) x1
1
2
3

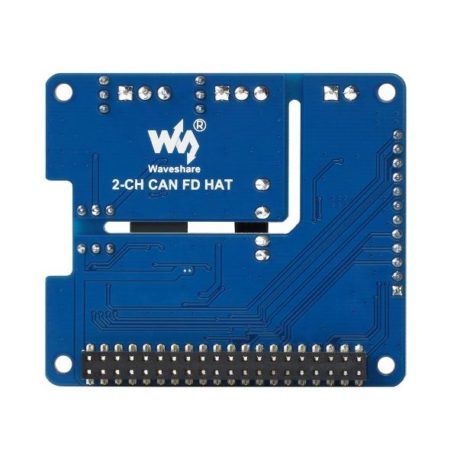

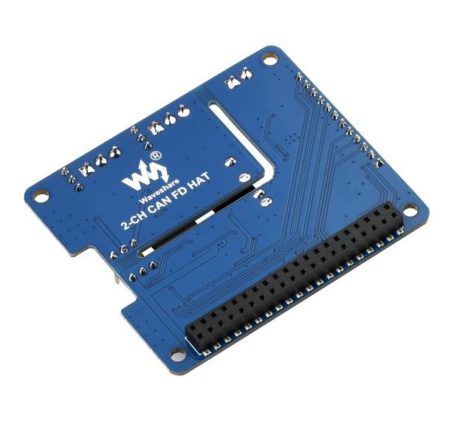

2-Channel CAN FD HAT For Raspberry Pi

Multi protections, high anti-interference capability, stable operation

Features At A Glance

The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate). It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.

Thanks to multi onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports both traditional CAN2.0 and CAN FD protocols
  • Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
  • Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
  • Onboard lightningproof, ESD protection, short circuit protection, more safe communication
  • Onboard voltage translator, select 3.3V/5V operating voltage by jumper
  • Onboard 120Ω terminal resistor, configured by jumper
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino)
Specifications
CAN CONTROLLERMCP2518FDCAN TRANSCEIVERMCP2562FD
CONTROL BUSSPIPOWER SUPPLYExternal power supply terminal OR Raspberry Pi
SCREW TERMINALINPUT VOLTAGEDC 8~26VOPERATING VOLTAGE5V
LOGIC LEVEL3.3V/5VDIMENSIONS65.0 × 56.5mm
What Can It Do?

Enable Isolated And Stable CAN FD Capability For Your Raspberry Pi

Designed For Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

2-Channel CAN Support

MCP2518FD CAN Controller + MCP2562FD CAN Transceiver

Electrical Isolation Circuitry Safe & Stable

SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection

Flexible And Handy Jumpers

Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers

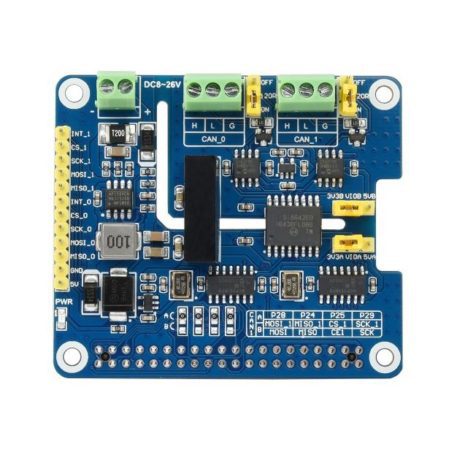

What’s On Board

  1. MCP2518FD controller
  2. MCP2562FD transceiver
  3. SI8642ED digital isolator
  4. MP1584EN power chip
  5. RT9193-33 power chip
  6. B0505LS-1W power supply isolation module
  7. Standard Raspberry Pi 40PIN GPIO header
  8. CAN bus screw terminal
  9. External power supply terminal
    8~26V DC input
  10. MCU control pins
    for use with host boards like Arduino
  1. 120Ω terminal resistor switch
  2. 3.3V/5V logic level switch
  3. CAN operating mode selection
    A: CAN_0 and CAN_1 use two separated SPI (default)
    B: CAN_0 and CAN_1 share a single SPI
  4. Power indicator
  5. 2A fast resettable fuse
  6. Power supply reverse-proof diode
  7. Power supply flow backward proof diode
  8. Freewheeling diode
  9. SM24CANB TVS diode
Pinout Definition

Outline Dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Yderligere information

Vægt200 g
GTIN / EAN / UPC
Manufacturer Product Number
Brand
Country of OriginCN
HS Tariff Code85389000
