In the box:
- CM4-DUAL-ETH-MINI + metal case (assembled) x1
- 5V 3A power adapter x1
- Screwdriver x1
- Thermal tape 2PCS x1
- Black anti-slip rubber 4PCS x1
Dual Gigabit Ethernet Base Board For CM4
Mini, Practical And Neat
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
Version Option
* Please refer to the part list for detailed package content
Dual Gigabit Ethernet Base Board

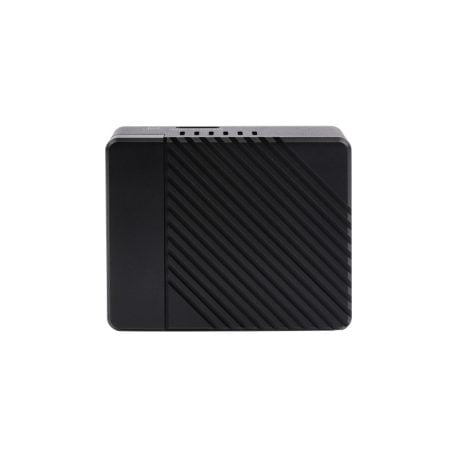

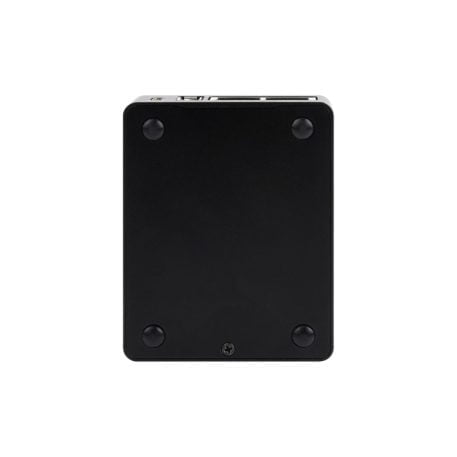

Dual Gigabit Ethernet Mini-Computer KitIn addition to the Dual Gigabit Ethernet Base Board, it is equipped with Aluminum Alloy case, fan and power supply adapter
Optional Black Metal Case

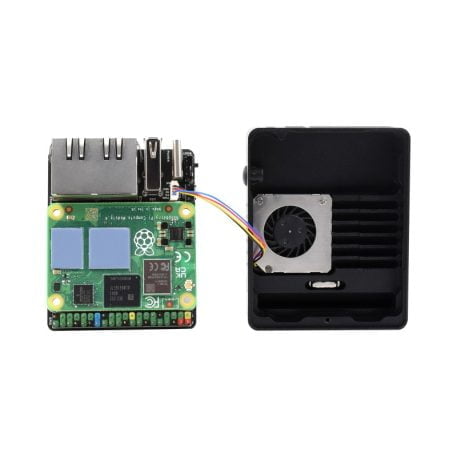

Better Protection For The Base Board, Comes With Cooling Fan For Efficient Heat Dissipation
Specifications
| CM4 SOCKET | suitable for all variants of Compute Module 4 |
|---|---|
| NETWORKING | Dual Gigabit Ethernet RJ45 connector |
| USB | USB 2.0 Port |
| PIN HEADER | Raspberry Pi 40PIN GPIO header |
| STORAGE | TF card socket for Compute Module 4 Lite (without eMMC) variants |
| FAN HEADER | 4-wire SH1.0 port, allows speed adjustment and measurement, 5V |
| POWER INPUT | 5V, Type-C interface |
| DIMENSIONS | 55.0 × 68.0mm |
Connecting With Compute Module 4
Standard CM4 Socket And 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module
Rich Interfaces

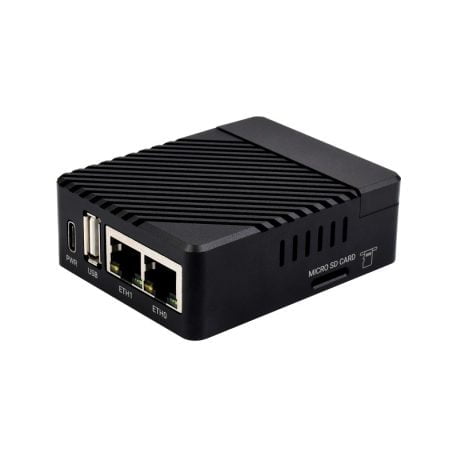

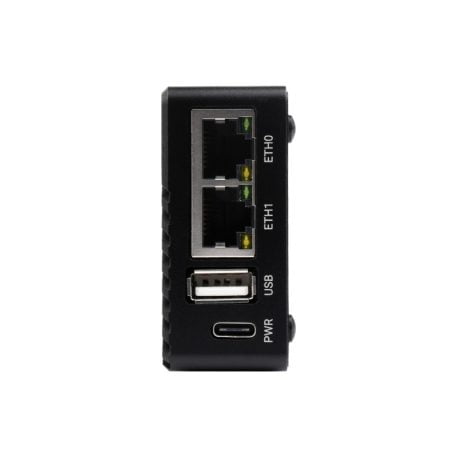

Precise Cut-Out With Clear Label
Each Cut-Out Is Completely Aligned With The Connector
Magnetic Design
Magnetic Removable Top With The Location Columns, Easy To Fix And
Better Protection For The GPIO Pins
Metal Case For Large Area Thermal Conductivity And Heat Dissipation

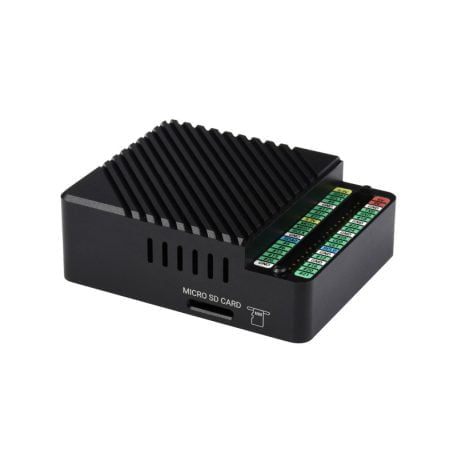

Built-In Speed-Adjustable Fan With Cooling Fins, More Efficient
Application Example
Suitable For Raspberry Pi Or Other Industrial Occasions With Special Function Requirements
Assembly Guide
What’s On Board
- 40PIN GPIO header
for connecting sorts of HAT - CM4 Socket
suitable for all variants of Compute Module 4 - RJ45 Dual Gigabit Ethernet Port
Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
ETHERNET 0: CM4 original network port
ETHERNET 1: PCIe extended network port - USB 2.0 Type A port
for connecting sorts of USB devices - FAN header
for connecting cooling fan, allows speed adjustment and measurement - Reset button
- Boot switch
ON: CM4 would be booted from USB-C interface
OFF: CM4 would be booted from eMMC or TF card
- Type-C port
5V/2.5A power supply, or used for eMMC programming - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - RTL8111H
Gigabit NIC chip - Indicator
PWR: indicating the power supply status of Raspberry Pi
SYS: indicating the working status of Raspberry Pi - SYSTEM switch
EEPROM_WP: Prevent EEPROM from being overwritten
WiFi_DIS: WiFi disabled, only for CM4 version with wireless
BT_DIS: Bluetooth disabled, only for CM4 version with wireless
