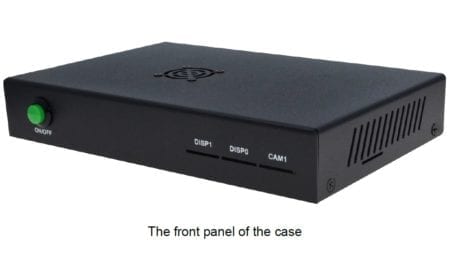

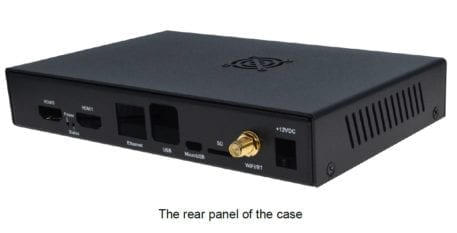

Case til Raspberry Pi Compute Module 4 IO Board

Beskrivelse

Features

• Specially design for Compute Module 4 IO Board
• Make Compute Module 4 IO Board an off the shelf Industrial Computer
• One click switch to control system On/Off
• Hardware protection, reliably fix CM4 on the IO board
• 12V/60mA low noise fan to reduce temperature of CM4
• Official certified 2.4G/5G WiFi /Bluetooth antenna installed
• Philips CR2032 battery to support RTC
• Dimension: 171.5(L) x 109.5(W) x 28.5(H) mm
• Weight: 450g

Dokumenter

Product Brief of CM4 IO Case 2021-1-4

Assembly Guide of CM4 IO Case 2021-1-15

Software Installation guide of CM4 IO Case 2020-1-6

Software files
