Beskrivelse
Specifikationer

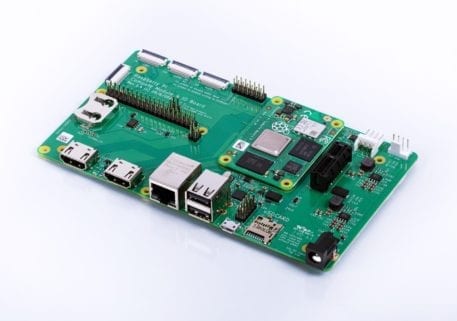

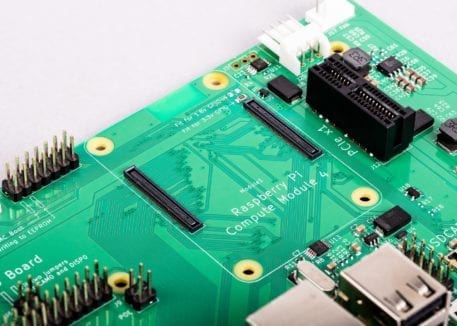

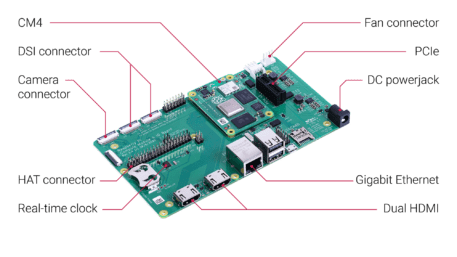

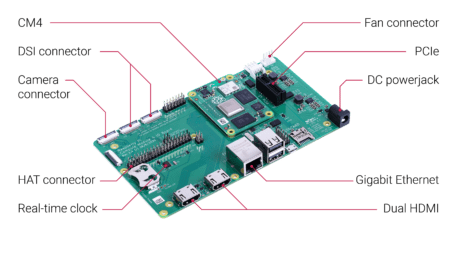

- CM4 socket: suitable for all variants of Compute Module 4
- Standard Raspberry Pi HAT connectors with PoE support
- Standard PCIe Gen 2 x1 socket
- Real-time clock (RTC) with battery backup
- Dual HDMI connectors

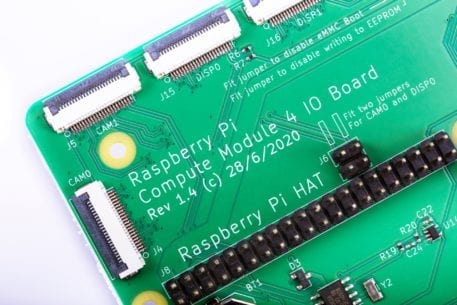

- Dual MIPI camera connectors
- Dual MIPI display connectors
- Gigabit Ethernet socket supporting PoE HAT
- On-board USB 2.0 hub with 2 USB 2.0 connectors
- SD card socket for Compute Module 4 variants without eMMC
- Support for programming eMMC variants of Compute Module 4
- PWM fan controller with tachometer feedback
- Input power: 12V input, +5V input with reduced functionality (power supply not supplied)
- Dimensions: 160 mm × 90 mm
Dokumenter
Raspberry Pi Compute Module 4 IO Board product brief
Raspberry Pi Compute Module 4 IO Board datasheet
Raspberry Pi Compute Module 4 IO Board KiCAD files
CM4IO Board KiCad-designfiler kræver funktioner, der ikke findes i den nuværende stabile udgivelse af KiCad. Installer venligst det seneste build. Builds til dit operativsystem er tilgængelige fra KiCAD Downloads page.
