Waveshare Raspberry Pi Compute Module 4 IO Board med PoE

399,00 DKK

Velegnet til evaluering af Raspberry Pi CM4 eller integreret i slutprodukter.

På lager: Leveringstid 1-3 hverdage.

Kun 8 tilbage på lager

Varenummer: 6032 Kategori:

Beskrivelse

What’s The Differences

WAVESHARE CM4 POE IO BOARD

RASPBERRY PI CM4 IO BOARD
POEintegrates 802.3af-compliant PoE circuit (5V/2.5A)PoE header only
USB4x USB 3.2 Gen1 ports
Micro USB port
2x USB 2.0 ports
Micro USB port
ETHERNETGigabit Ethernet RJ45 with PoE supportGigabit Ethernet RJ45 with PoE support
HEADERColor-coded 40PIN GPIO header40PIN GPIO header
standard PCIe Gen 2 × 1 socket
FAN5V / 12V standard fan connector12V standard fan connector
POWER INPUT7V~36V12V
CM4 SOCKETsuitable for all variants of Compute Module 4
RTCReal-time clock with battery socket and ability to wake Compute Module 4
VIDEO2x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
CAMERA2x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
SD CARD SLOTMicroSD card socket for Compute Module 4 Lite (without eMMC) variants
DIMENSIONS160 × 90mm

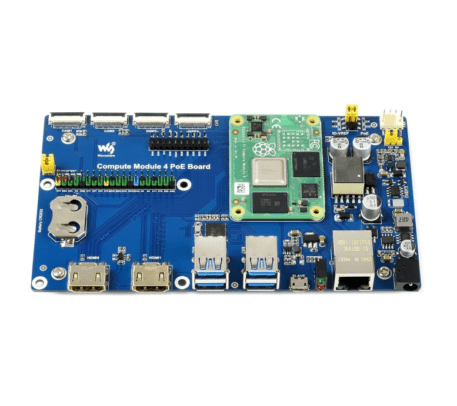

Connecting With Compute Module 4

Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For All Variants Of Compute Module 4

Rich Peripheral Connectors

Onboard Connectors Including CSI/DSI/RTC/HDMI/USB/ETH/TF Card

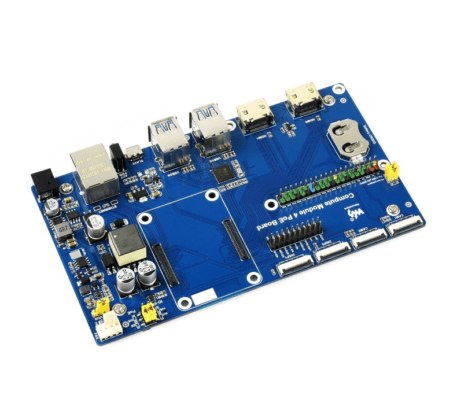

What’s On Board

  1. CM4 socket
    suitable for all variants of Compute Module 4
  2. Power input
    7~36V wide range power supply
  3. Gigabit Ethernet connector
    Gigabit Ethernet RJ45 with PoE support
  4. USB SLAVE port
    allows burning system image into Compute Module 4 eMMC variants
  5. USB3.2 ports
    4x USB 3.2 Gen1 ports, for connecting sorts of USB devices
  6. HDMI ports
    2x HDMI ports, supports dual 4K 30fps output
  7. RTC
    RTC battery holder, allows RTC-related functions like wakeup, shutdown, reboot, and more
  8. CAM
    2x MIPI CSI camera ports
  9. DISP
    2x MIPI DSI display port
  10. FAN
    for connecting cooling fan, allows speed adjustment and measurement
  11. FAN power selection
    5V or 12V voltage to drive the fan
  12. IO-VREF/PoE selection
    CM4 IO logic level: 3.3V or 1.8V
    PoE: enable (EN) or disable (DIS)
  13. 40PIN GPIO header
  14. CAM0 and DISP0 I2C bus
    fit the jumpers when using CAM0 or DISP0
  15. Misc configurations
  16. Dual LED indicators
    red: Raspberry Pi power indicator
    green: Raspberry Pi operating statusindicator

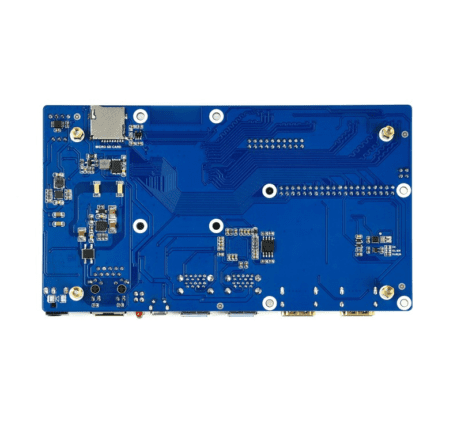

  17. TF card slot (bottom side)
    insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite
Outline Dimensions

Application Example

Suitable For PoE Powered Raspberry Pi Projects, Or Other Industrial Context

for reference only, CM4, display, and cameras are NOT included.
