PiJuice Solar Panel

Description

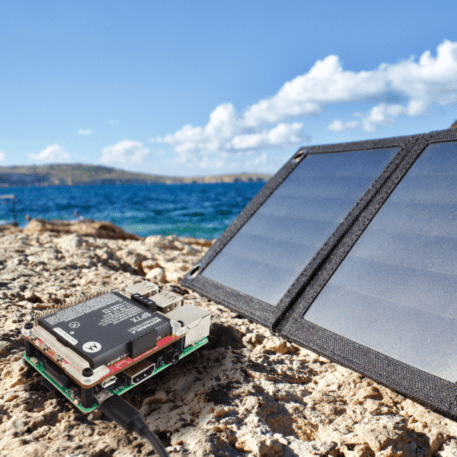

The PiJuice Solar panel is the ideal way to charge and/or power your PiJuice HAT and Raspberry Pi for free when you’re in a sunny location. By using a solar panel and PiJuice, containing revolutionary PiAnywhere technology, you can truly take your Raspberry Pi off the grid!

Features

• Highly portable – a compact panel that folds down and secures with magnets into a super compact size. Easy to pack up and go
• Easily mountable – allow easy attachment to backpacks, trees, or tents

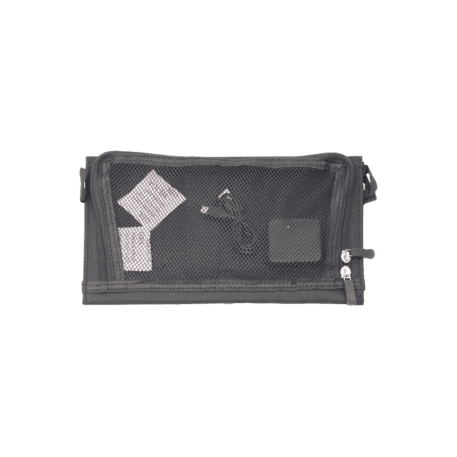

• Has a useful storage pouch for storing any essential items
• Lightweight
• Water resistant up to IPX4 rating
• Incredibly durable stitching and construction
• Features SunPower solar panels which provide industry-leading solar conversion efficiency
• Output on the different versions:

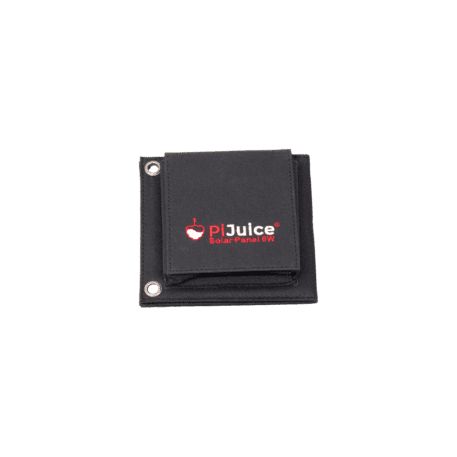

  • 6 Watt: One Regulated 5v/1A USB output

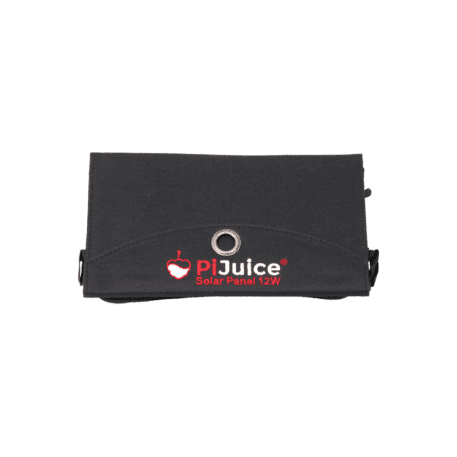

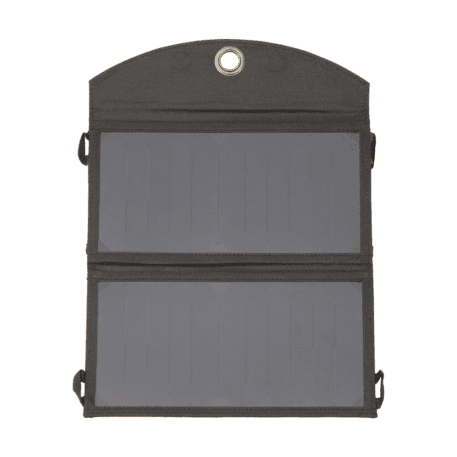

  • 12 Watt: Two Regulated 5v/2A USB outputs

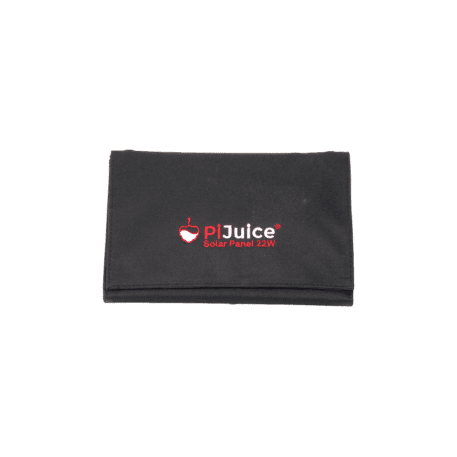

  • 22 Watt: Two Regulated 5v/2.4A USB outputs

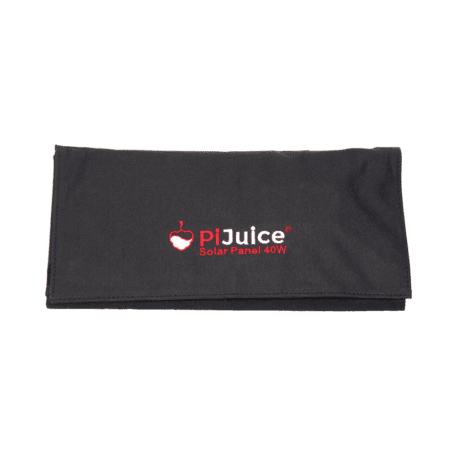

  • 40 Watt: Two Regulated 5v/2.4A USB outputs and a 19 volt DC jack
• It works with your PiJuice, smartphones, tablets, audio players and more

Technical Information

6 Watt:

• Solar panel – 5.5 volts / 6 watts
• Regulated Max output – 5 volts / 5 watts
• Single USB max output – 5 watts
• Built in smart-power chip
• Boxed dimensions – 17.3 x 17.7 x 3.5cm
• Unboxed, folded dimensions – 16.3 x 15.6 x 2.5cm
• Unboxed, unfolded dimensions – 32.8 x 15.6 x 2.4cm
• Boxed weight – 420g
• Unboxed weight – 320g
• Country of origin – China
• CE and FCC tested

12 Watt:

• Solar panel – 5.5 volts / 12 watts
• Regulated Max output – 5 volts / 10 watts
• Single USB max output – 10 watts (there are two on board which can be used simultaneously but max total output will be 10 watts overall)
• Built in smart-power chip
• Boxed dimensions – 28.5 x 16.6 x 4.2cm
• Unboxed, folded dimensions – 26 x 15.5 x 3cm
• Unboxed, unfolded dimensions – 38 x 26 x 2.5cm
• Boxed weight – 485g
• Unboxed weight – 390g
• Country of origin – China
• CE and FCC tested

22 Watt:

• Solar panel – 5.5 volts / 22 watts
• Regulated Max output – 5 volts / 20 watts
• Single USB max output – 12 watts (there are two on board which can be used simultaneously, up to a total output of 20 watts)
• Built-in smart-power chip
• Boxed dimensions – 25.5 x 16.6 x 3.6 cm
• Unboxed, folded dimensions – 23 x 16 x 3cm
• Unboxed, unfolded dimensions – 83 x 23 x 1.8cm
• Boxed weight – 620g
• Unboxed weight – 520g
• Country of origin – China
• CE and FCC tested

40 Watt:

• Solar panel – 6.5 volts / 40 watts
• Regulated Max output – 5 volts / 35 watts
• Single USB max output – 12 watts (there are two on board which can be used simultaneously)
• Includes 19 volt DC jack output
• Built in smart-power chip
• Boxed dimensions – 34.7 x 17.1 x 5.1cm
• Unboxed, folded dimensions – 33 x 16 x 4cm
• Unboxed, unfolded dimensions – 70.5 x 65 x 1.8cm
• Boxed weight – 1.1kg
• Unboxed weight – 0.9kg
• Country of origin – China
• CE and FCC tested

What’s inside

• PiJuice Solar Panel
• USB to microUSB Cable
• User Manual
