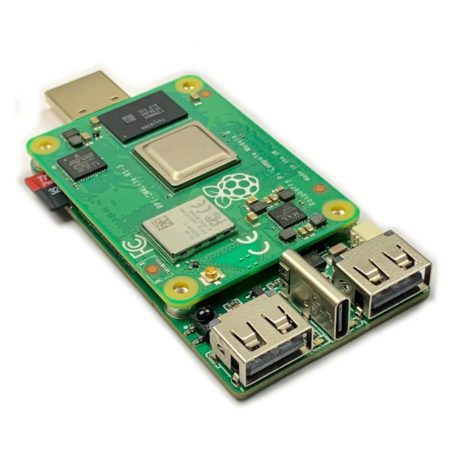

Raspberry Pi CM4 TV Stick

Beskrivelse

Raspberry Pi Compute Module 4 and SD Card are NOT included

Specs:

• compatible with Raspberry Pi CM4 eMMC and no-eMMC
• HDMI plug
• micro SD card connector
• USB-C connector
• Two USB2.0 USB-A connectors
• USB2.0 as solder pads on reverse side
• IR receiver on GPIO17
• User button on GPIO14 (also tied to nRPIBOOT: hold on power on to enter USB MSD mode for eMMC programming/fw update)
• USB multiplexer selector switch: enable 2xUSB-A ports or CM4 USB device mode
• Power and Act LEDs
• 14 GPIOs, as well as GND, 5V and 3.3V solder pads on reverse side of PCB for hacking
• Connector for Ambilight-like lightning with WS2812 or WS2801 LEDs (GND, GPIO18, GPIO10 and GPIO11)

Package includes:

• Raspberry Pi CM4 TV Stick
